ZHH series slurry pump
ZHH series slurry pump
Features and uses:
ZHH type pump is a cantilever, horizontal centrifugal slurry pump. It is suitable for conveying strong abrasive, low concentration and high lift slurry or high concentration and low corrosion slurry in metallurgical, coal, electric power, building materials and other industrial sectors.
The pump body and impeller of ZHH type pump are lined with anti-wear metal. The shaft seal can be packing seal or centrifugal seal. The outlet position of the pump can be installed and used according to the need to rotate eight different angles at 45 ° C intervals.
Product model description:
For example: 25ZHHC
25: pump outlet diameter (mm)
Z: Impurity pump
H: Heavy duty
H: High head
C: Bracket form

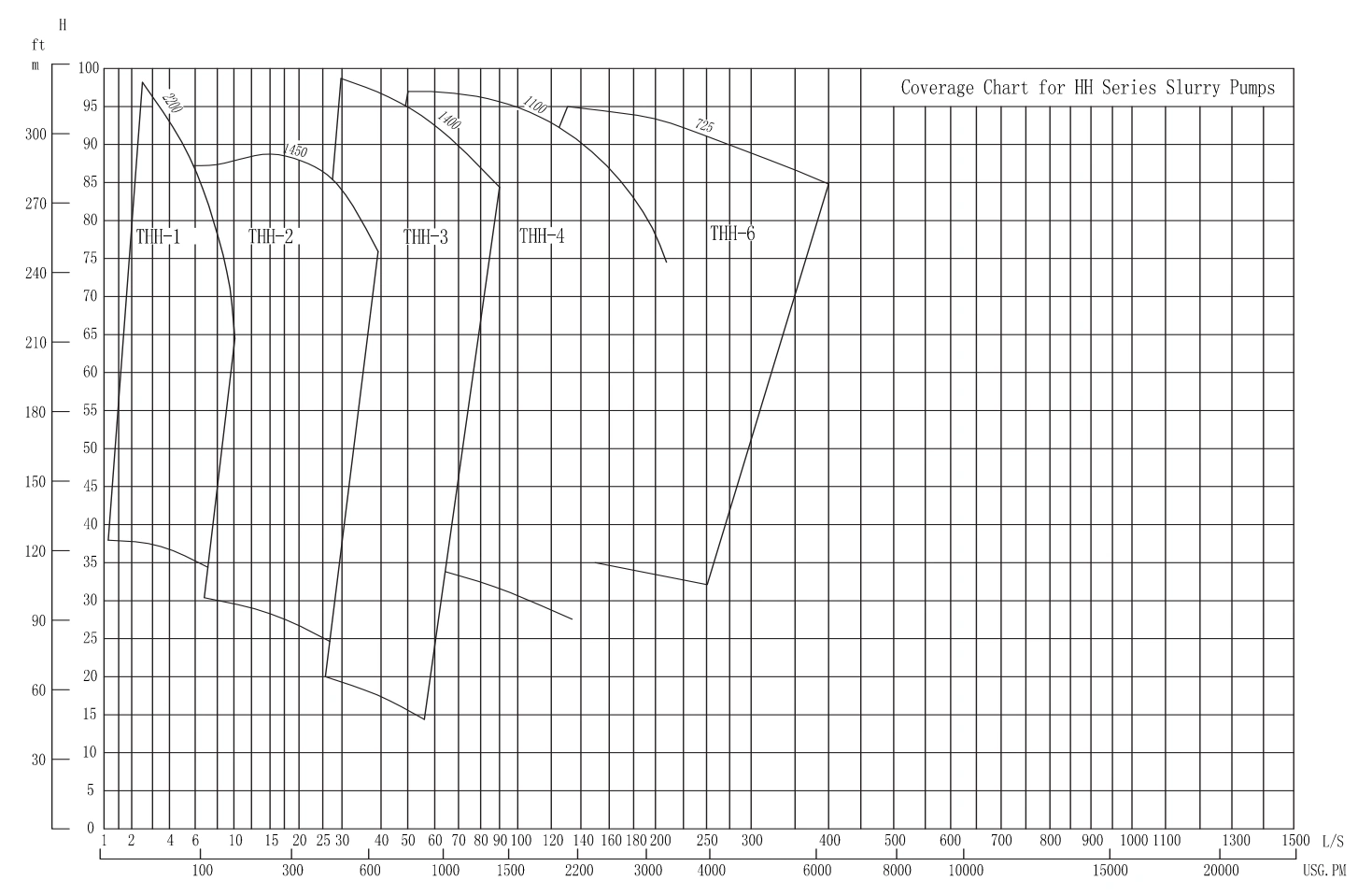

ZHH series slurry pump performance parameter table
| Type number |
Allowed with power |
Water clearing ability | Curve number | ||||||
| Flow volume Q | Head H(m) |
Turning spee |
Efficiency |
Cavitation allowance |
Impeller diameter |
||||
| (m3/h) | (L/s) | ||||||||
| 25ZHHC | 30 | 7-36 | 2-10 | 25-100 | 1400-2200 | 20 | 2-5.5 | 343 |
WPA45HE01 |
|
50ZHHD |
60 |
18-134 |
5-40 |
25-80 |
850-1450 |
45 |
3-6 |
476 |
WPA32E011 |
|
75ZHHE |
120 |
144-288 |
4-80 |
22-100 |
600-1400 |
60 |
2-8 |
518 |
WPA43E01 |
|
75ZHHX |
300 |
144-288 |
4-80 |
22-100 |
600-1400 |
60 |
2-8 |
518 |
WPA43E01 |
|
100ZHHF |
260 |
36-720 |
10-200 |
12-51.5 |
26-100 |
64 |
2-8 |
720 |
WPA65E01 |
|
100ZHHX |
560 |
36-720 |
10-200 |
9.5-40 |
26-100 |
64 |
2-8 |
720 |
WPA65E01 |
