G/GH Gravel Sand Pump
Outlet Size: 4-16inch
Inlet size: 6-18inch
Capacity: 36-4320m3/h
Head: 5-80m
Handling solids: 0-260mm

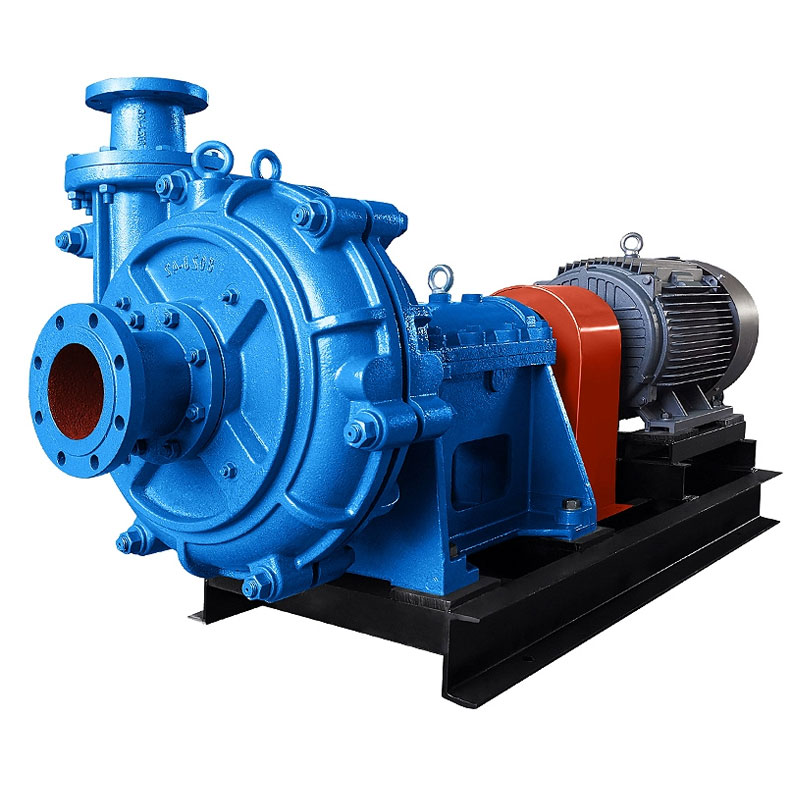

Gravel Sand Pump is horizontal single-casing gravel pump with wide channel to transfer sands,slurries or gravels with big particle size.
TG(H) Gravel Sand Pump is horizontal single-casing gravel pump with wide channel to transfer sands,slurries or gravels with big particle size. The wet parts are made of Ni-hard and high-Chrome alloys to ensure long service life. It has superior performance than common pumps in dredging, sand mining, barge loading and mineral processing etc. With all the advantages of TG Gravel pump,TGH gravel pump has achieved extra high head for special working conditions.

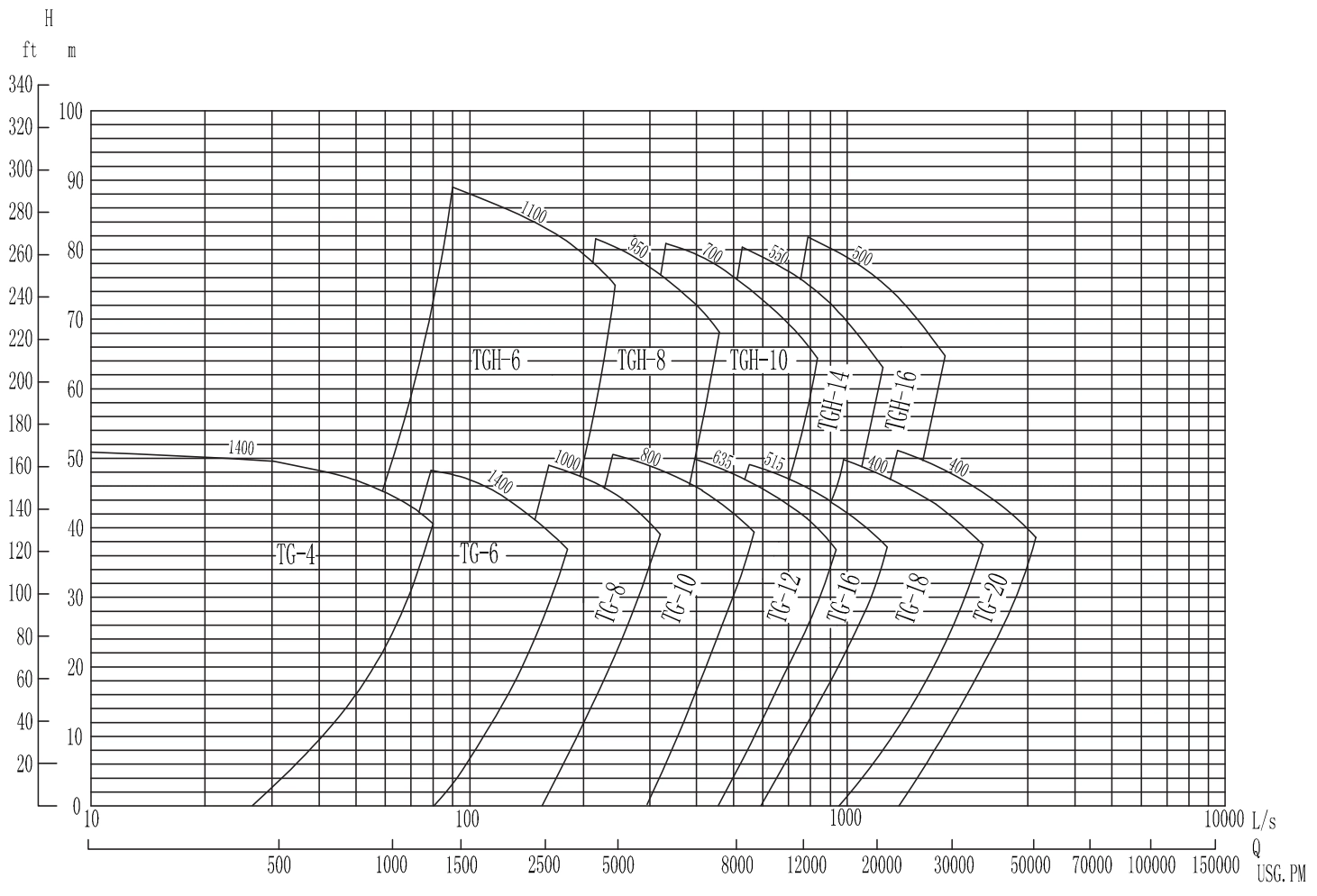

Working range of TG(H) series Gravle pump
(only reference for intial model selection)
Design Features
• Horizontal,Cantilevered, Single casing, Centrifugal Gravel sand pump.• The wetted parts are made of Ni-hard and Ultrahigh-chrome alloys with super strong abrasion resistance.
• The discharge direction of pump can be oriented in any angle of 360°.
• Packing seal, Expeller seal and Mechanical seal are available as per different application.
• Excellent NPSH performance.
• Simple and reliable construction, Easy to disassembly, assembly and maintain.
Model Meaning
TG-4ET: RUITE
G: Gravel
4: Outlet diameter(inch)
E: Bracket type
TG Gravel Sand Pumps Quick Selection Chart
| Model |
Max.Power P (kw) |
Capacity Q (m³/h) |
Head H (m) |
Speed n (r/min) |
Eff. η (% ) |
NPSH (m) |
Impeller Dia. (mm) |
| TG-4D | 60 | 36-250 | 5-52 | 600-1400 | 58 | 2-5.5 | 378 |
| TG-4E | 120 | 36-250 | 5-52 | 600-1400 | 58 | 2-5.5 | 378 |
| TG-6E | 120 | 126-576 | 6-45 | 800-1400 | 60 | 3-4.5 | 391 |
| TG-8S | 560 | 216-936 | 8-52 | 500-1000 | 65 | 3-7.5 | 533 |
| TGH-8S | 560 | 180-1440 | 24-80 | 500-950 | 72 | 2.5-5 | 711 |
| TG-8F | 260 | 216-936 | 8-52 | 400-800 | 65 | 3-7.5 | 533 |
| TG-10F | 260 | 360-1440 | 10-60 | 350-700 | 65 | 1.5-4.5 | 667 |
| TG-10G | 600 | 360-1440 | 10-60 | 400-850 | 65 | 1.5-4.5 | 667 |
| TGH-10G | 600 | 288-2808 | 16-80 | 350-700 | 73 | 2-10 | 950 |
| TG-12G | 600 | 576-3024 | 8-70 | 300-700 | 68 | 2-8 | 864 |
|
TG-/12T |
1200 |
576-3024 | 8-70 | 300-700 | 68 | 2-8 | 864 |
| TG-14G | 600 | 720-3600 | 18-45 | 300-500 | 70 | 3-9 | 1016 |
|
TG-14T |
1200 |
720-3600 | 18-45 | 300-500 | 70 | 3-9 | 1016 |
| TGH-14TU | 1200 | 324-3600 | 26-70 | 300-500 | 72 | 3-6 | 1270 |
| TG-16TU | 1200 | 720-4320 | 12-48 | 250-500 | 72 | 3-6 | 1067 |
