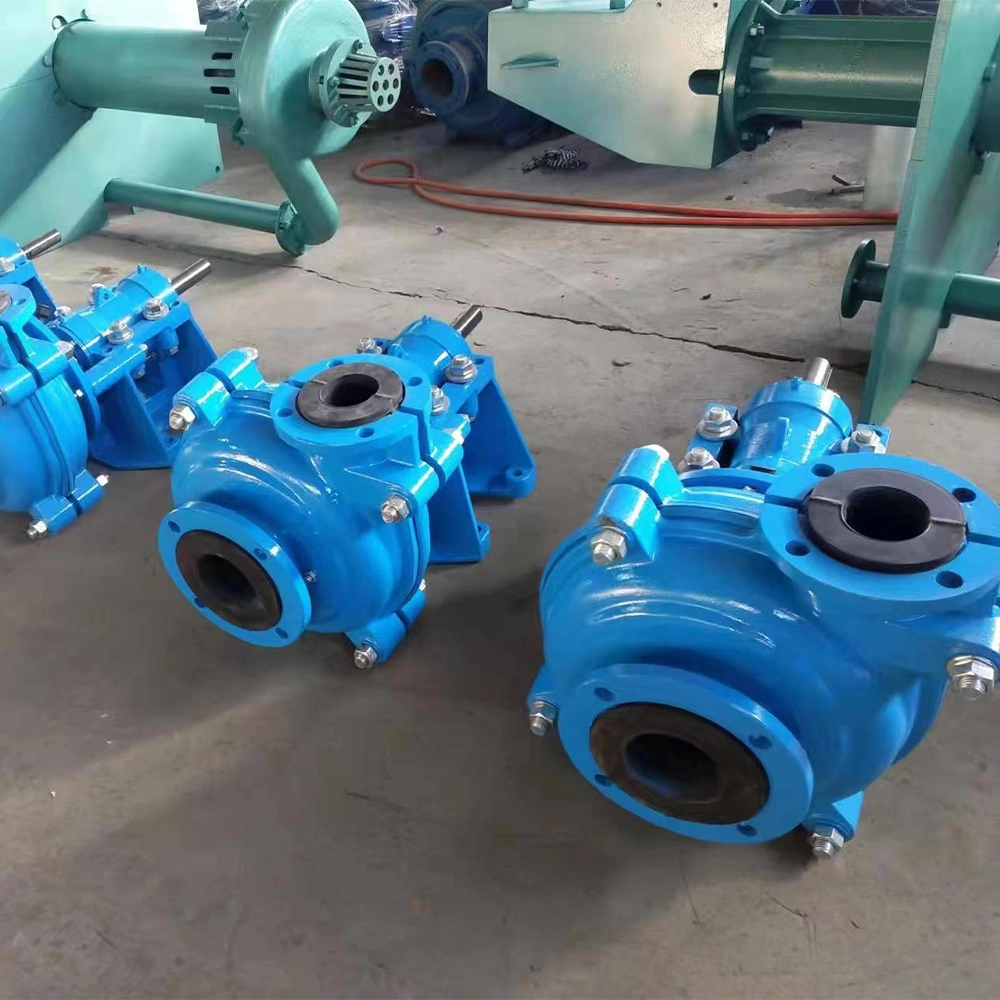

THR Rubber Slurry Pumps
Model: THR Drvie
Typ: ZVz/CRz/CV/DC
Power: Motor / Diesel
Size: 1” to 18” ( 25mm to 450 mm)
Max Capacity: 5,400 m3/h
Max Head: 66m
THR rubber lined slurry pumps are similar to TH metal lined slurry pump in structure. The main difference between TH and THR is the material of wetted parts, which are natural rubber, synthetic rubber or other wear-resistant rubbers. THR rubber lined slurry pumps are more suitable in delivering strong corrosive or abrasive slurries of small particle size without sharp edges.

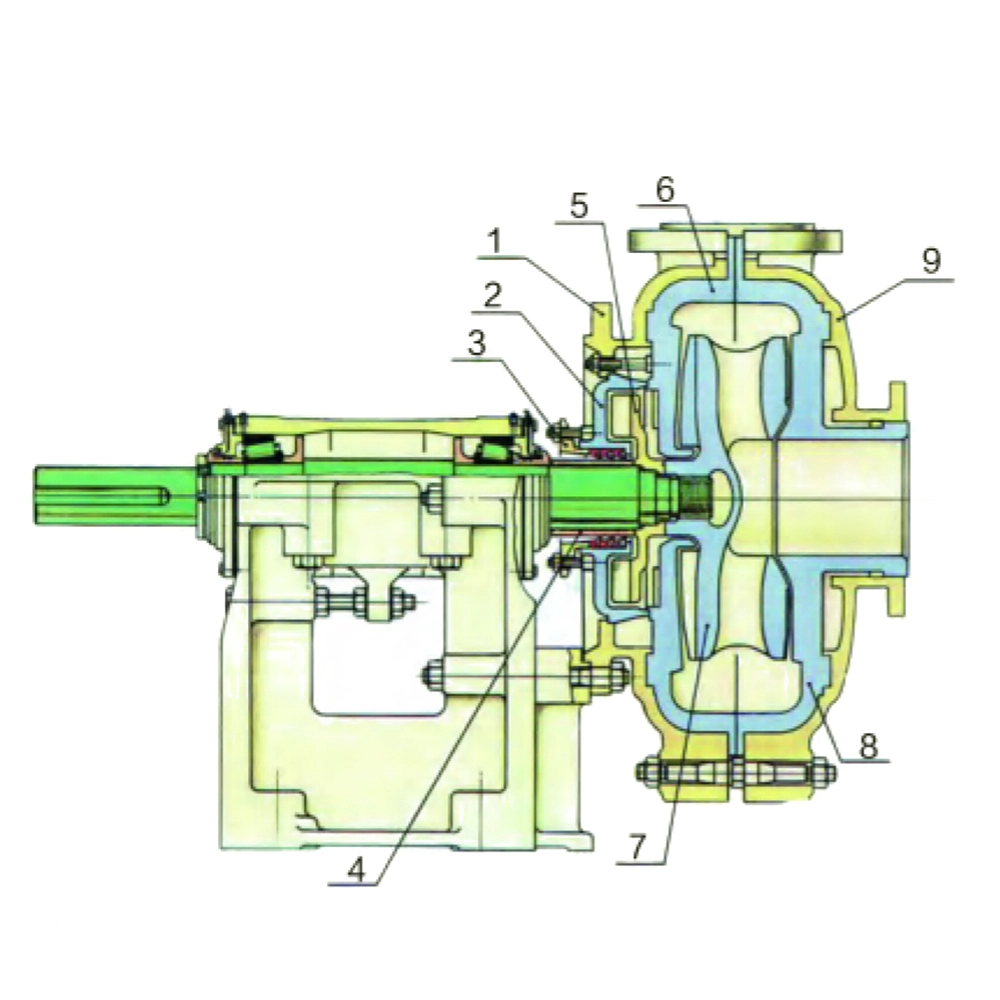

Main Parts:
IMPELLER，LINER，STUFFING BOX，EXPELLER SEAL, VOLUTE，CASING，BEARING ASSEMBLY，PUMP BASE, etc.
Main material:
Natural rubber, Synthetic rubber or other wear-resistant rubbers.
Advantage:
1. It can be used in various working conditions and is the most commonly used product.
2. Various high-quality rubber materials meet the working conditions under different corrosion conditions.
3. Spare parts are standardized and easy to purchase.
---------------------------------------------
Specifications and Performance：
|
Type |
Max. Power (kw) |
Materials |
Clear water performance |
Impeller Vane No. |
|||||
|
Liner |
Impeller |
Capacity Q (m3/h) |
Head H (m) |
Speed n (rpm) |
Eff. η (%) |
NPSH (m) |
|||
|
1.5/1B-THR |
15 |
Rubber |
Rubber |
10.8-25.2 |
7-52 |
1400-3400 |
35 |
2-4 |
3 |
|
2/1.5B-THR |
15 |
Rubber |
Rubber |
25.2-54 |
5.5-41 |
1000-2600 |
50 |
3.5-8 |
5 |
|
3/2C-THR |
30 |
Rubber |
Rubber |
36-75.6 |
13-39 |
1300-2100 |
55 |
2-4 |
5 |
|
4/3C-THR |
30 |
Rubber |
Rubber |
79.2-180 |
5-34.5 |
800-1800 |
59 |
3-5 |
5 |
|
4/3D-THR |
60 |
Rubber |
Rubber |
79.2-180 |
5-34.5 |
800-1800 |
59 |
3-5 |
5 |
|
6/4D-THR |
60 |
Rubber |
Rubber |
144-324 |
12-45 |
800-1350 |
65 |
3-5 |
5 |
|
6/4E-THR |
120 |
Rubber |
Rubber |
144-324 |
12-45 |
800-1350 |
65 |
3-5 |
5 |
|
8/6E-THR |
120 |
Rubber |
Rubber |
324-720 |
7-49 |
400-1000 |
65 |
5-10 |
5 |
|
8/6R-THR |
300 |
Rubber |
Rubber |
324-720 |
7-49 |
400-1000 |
65 |
5-10 |
5 |
|
10/8ST-THR |
560 |
Rubber |
Rubber |
540-1188 |
12-50 |
400-750 |
75 |
4-12 |
5 |
|
10/8E-M |
120 |
Rubber |
Rubber |
540-1188 |
10-42 |
500-900 |
79 |
5-9 |
5 |
|
12/10ST-THR |
560 |
Rubber |
Rubber |
720-1620 |
7-45 |
300-650 |
80 |
2.5-7.5 |
5 |
|
14/12ST-THR |
560 |
Rubber |
Rubber |
1152-2520 |
13-44 |
300-500 |
79 |
3-8 |
5 |
|
16/14ST-THR |
560 |
Rubber |
Rubber |
1368-3060 |
11-63 |
250-550 |
79 |
4-10 |
5 |
|
18/16TU-THR |
1200 |
Rubber |
Rubber |
2160-5040 |
8-66 |
200-500 |
80 |
4.5-9 |
5 |
|
20/18TU-THR |
1200 |
Rubber |
Rubber |
2520-5400 |
13-57 |
200-400 |
85 |
5-10 |
5 |
Note：For detailed selection of flow rate, head, specific gravity, and equipped power, please consult us.
