Product descriptions from the supplier

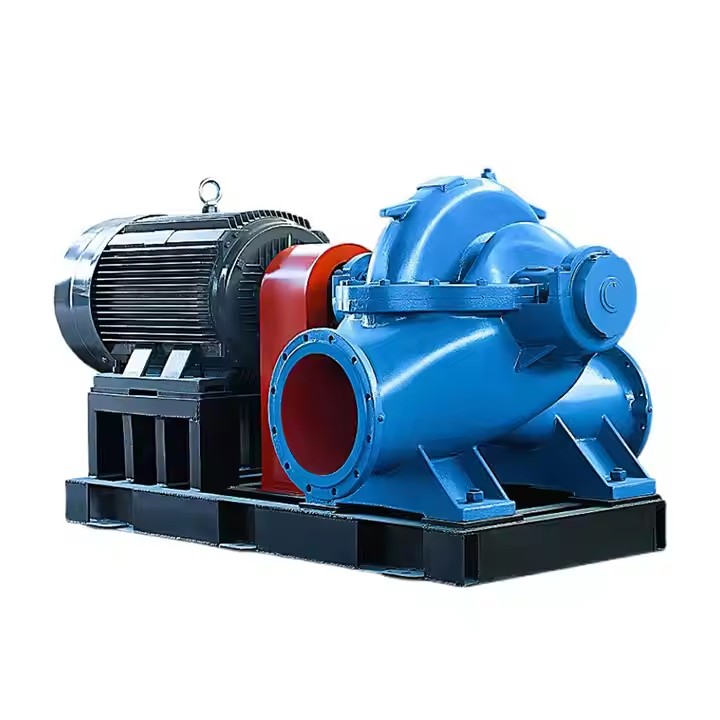

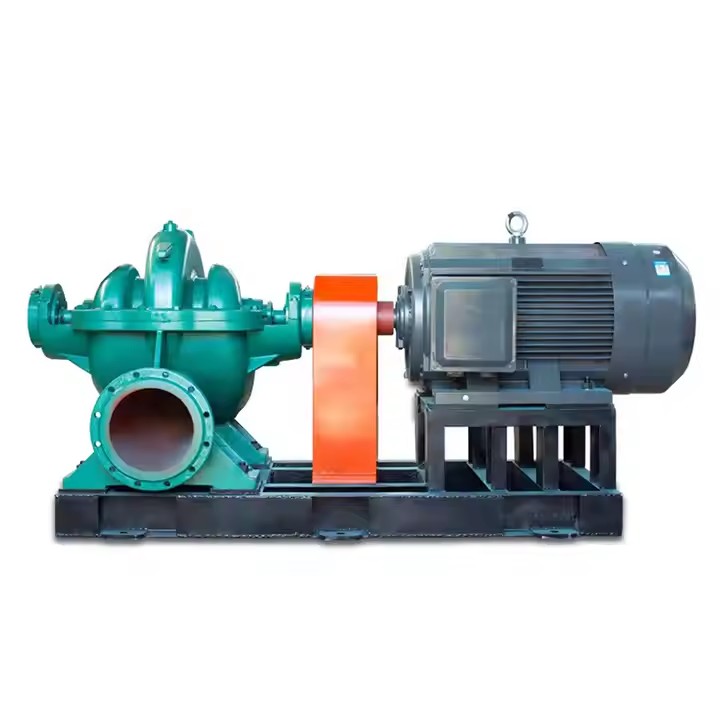

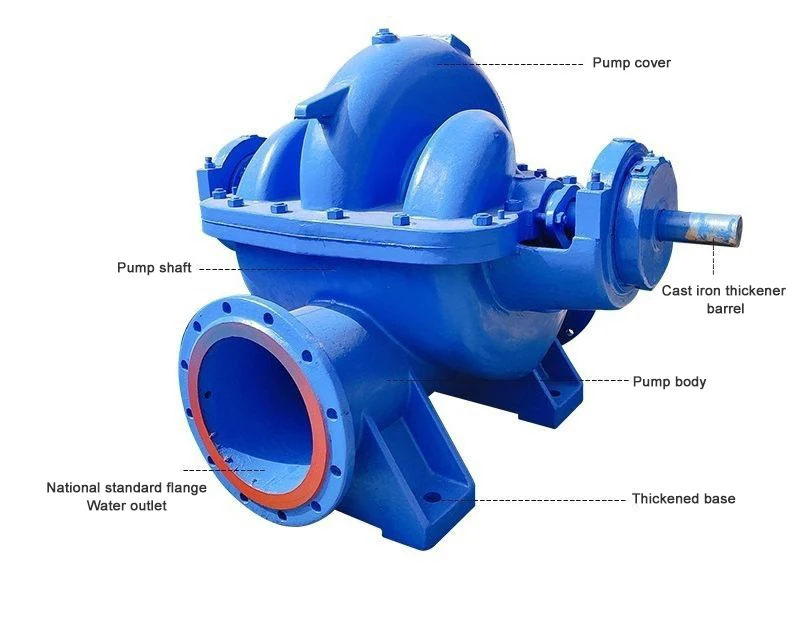

S.SH type pump is a single-stage, double suction, centrifugal pump with a split pump casing, used for pumping clean water and liquids with physical and chemical properties similar to water.
When the head of this pump is between 9 meters and 140 meters, and the flow rate is between 126m³/h and 12500m³/h, the maximum temperature of the liquid shall not exceed 80℃.
Suitable for use in factories, mines, urban water supply, power stations, large-scale water conservancy projects, farmland irrigation, and drainage, the 48SH-22 large pump can also be used for heating
Used for circulating pumps in power plants.
Product Description
|
Name
|
Double suction pump
|
|
Capacity
|
126~12500m³/h
|
|
Head
|
9-140m
|
|
Power
|
22-850kw
|
|
Speed
|
970/1450/2950rpm
|
|
Outlet Size
|
250mm
|
|
Material
|
Stainless steel, cast iron
|
|
Shaft Seal:
|
Mechnical seal, Packing seal
|
|
Voltage
|
220v/380v/660v/400V/415V
|
|
Application
|
Mines, urban water supply, power stations, large-scale water conservancy projects, farmland irrigation and drainage
|

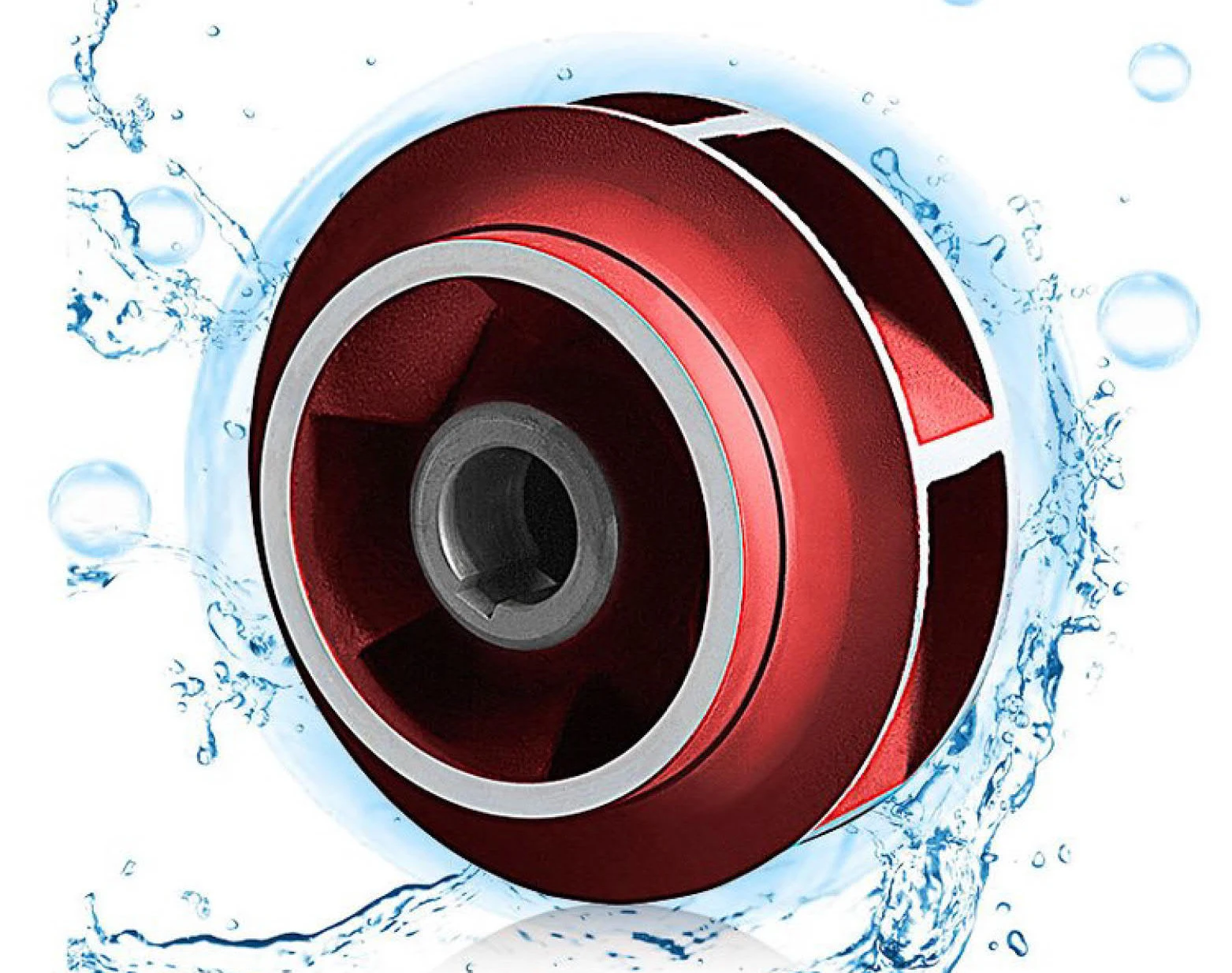

Double suction impeller

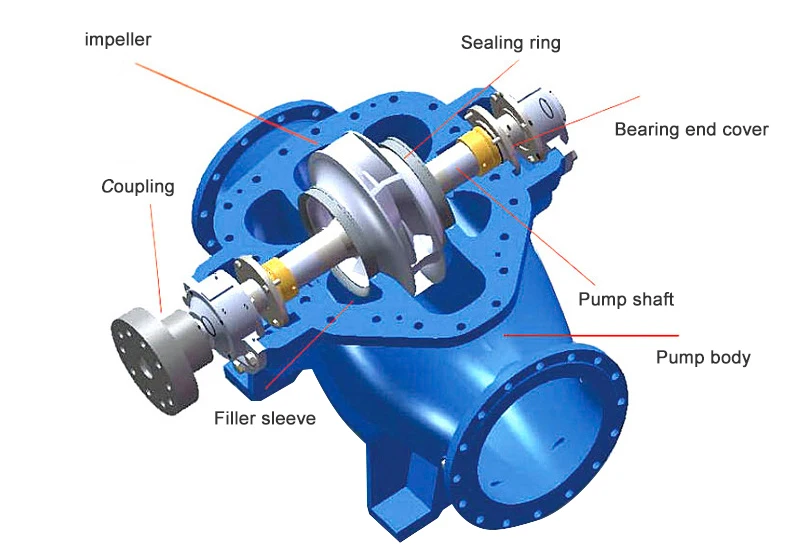

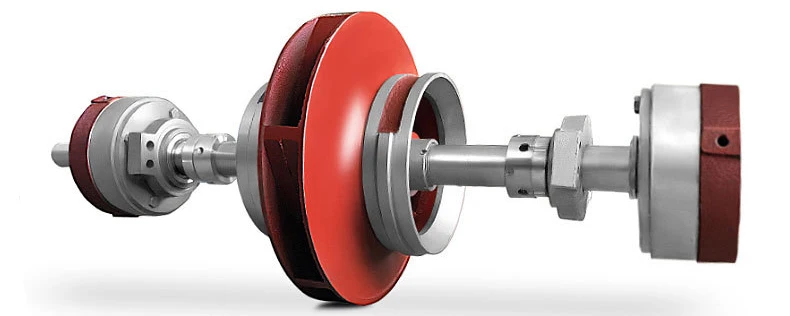

Rotor assembly

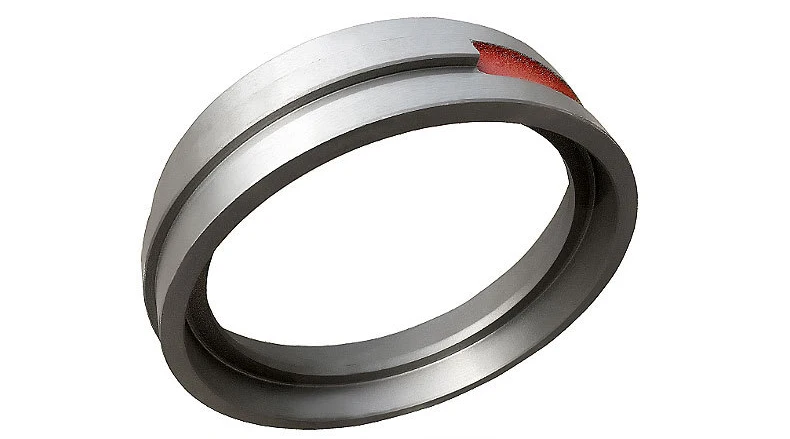

Sealing ring
Driving method

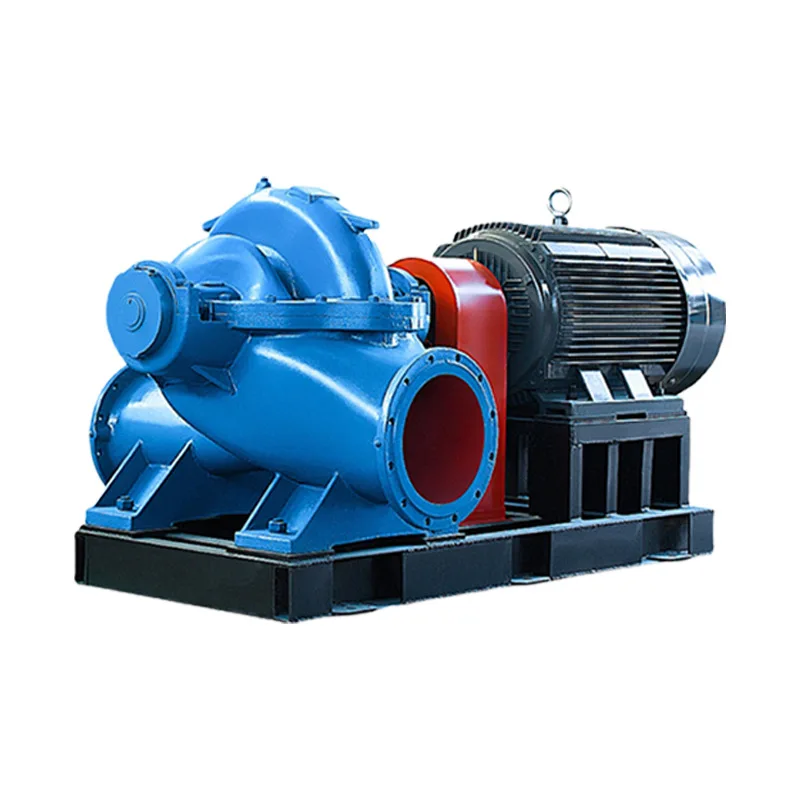

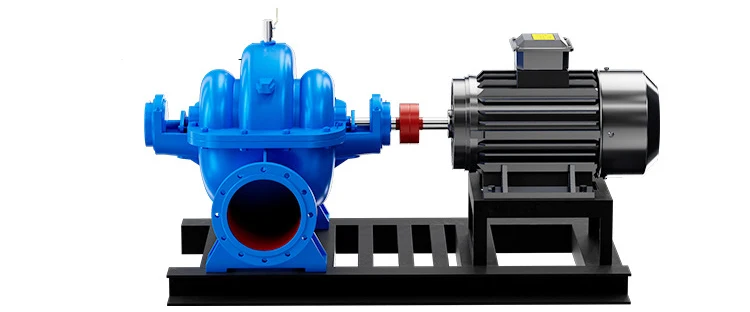

Cooperate with the motor
Electric motor driven double suction pump has relatively small limitations and is suitable for fields such as agricultural irrigation, aquaculture water supply, pumping stations, drainage water supply, sewage treatment, etc. It can meet the pump needs of most situations.

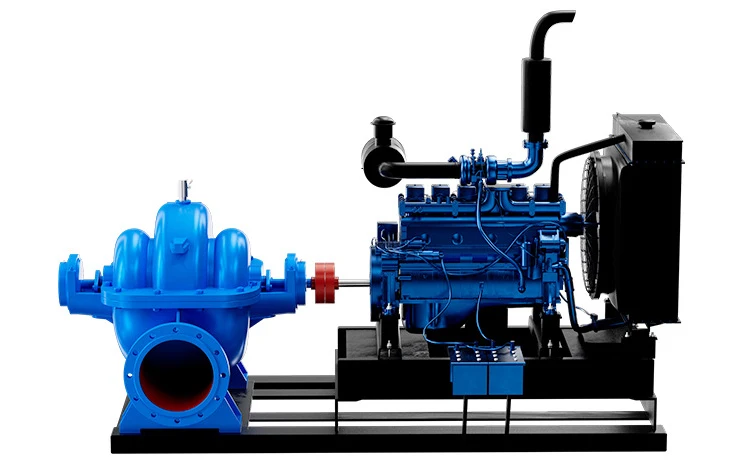

Cooperate with diesel engine
Diesel engine driven double suction pump, used in remote areas or special working environments where power cannot be supplied. Suitable for irrigation, animal husbandry, etc., it solves the problem of using pumps in areas where electricity is not available.

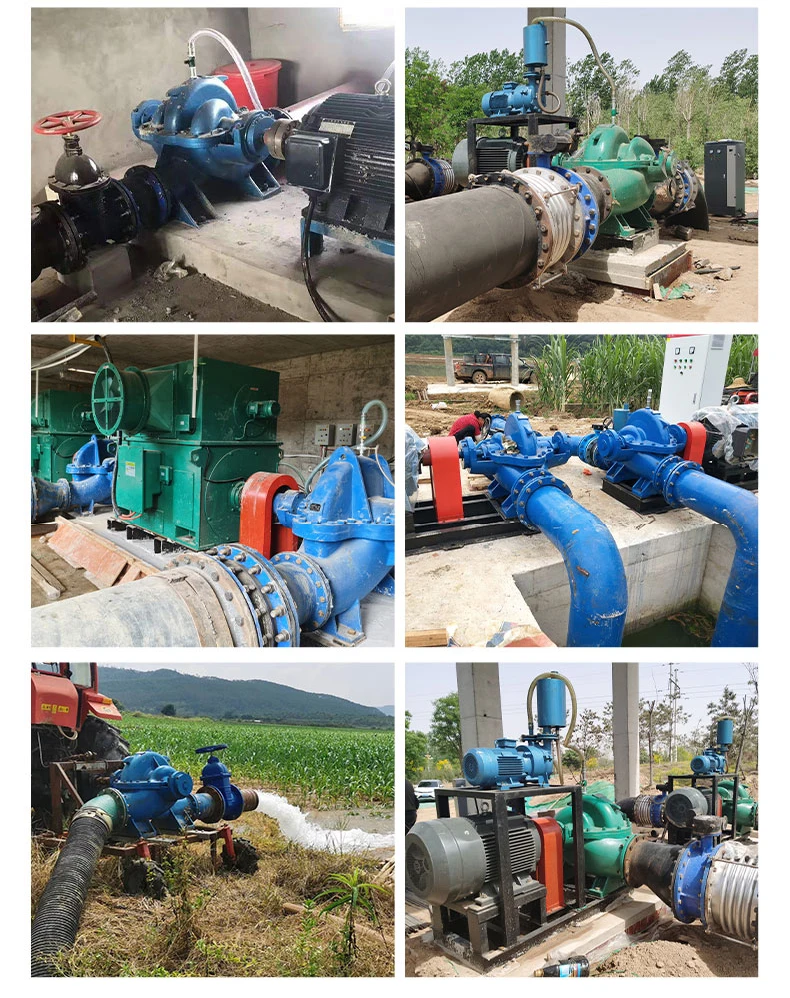

Customer feedback on usage
