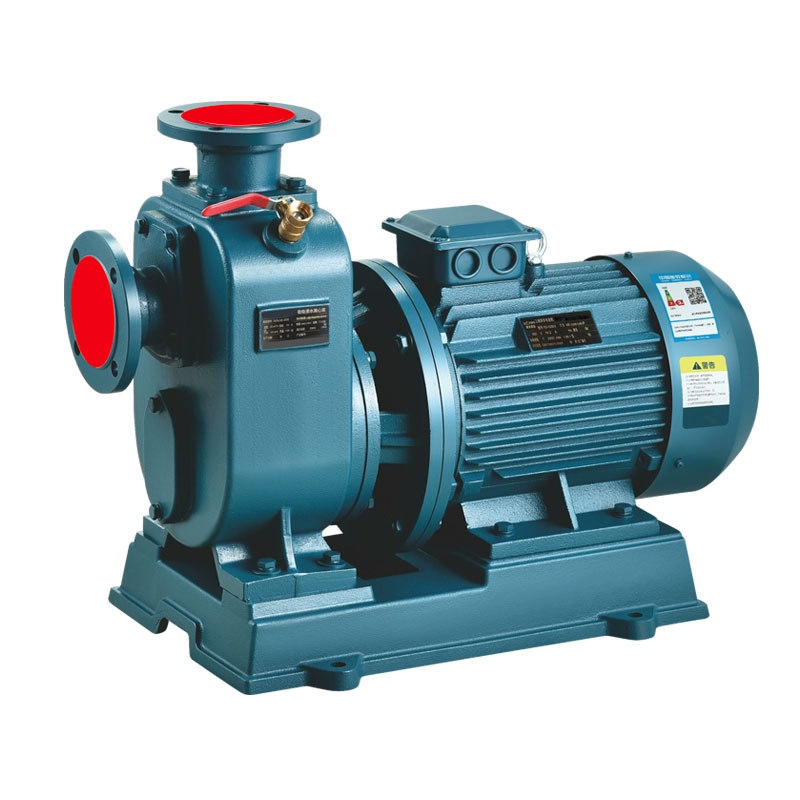

ZSL strong self-priming. High lift. Large flow. Direct-connected double priming self-priming pump

Product characteristics

The pump can use split type and direct type and disassembly type three kinds of structure, according to the type is divided into water type, sewage type two series, compared with similar products in China, has a simple and compact structure, small vibration, good self-priming performance, strong sewage capacity, energy saving, easy use and maintenance advantages, has a broad application market and development prospects.

Product overview

ZSL strong self-priming. High lift. Large flow. Direct-connected double priming self-priming pump is a new energy-saving double priming self-priming pump product developed by our company according to market demand. ZSL strong self-priming. High lift. Large flow. Direct-connected double priming self-priming pump solves the problems of large axial tension, long self-priming time and low efficiency of single-priming self-priming pump. It has the advantages of high suction range, short self-priming time, high efficiency, remarkable energy-saving effect, stable operation and long service life. ZSL clean water type is suitable for transporting clean water or mild sewage occasions, higher efficiency than sewage type, good self-priming performance. ZSL sewage pump set self-priming and non-clogging sewage in one, the use of axial return external mixing, and through the unique design of pump body, impeller flow channel, neither need to install the bottom valve and irrigation water, but also can suck and drain containing particles solid and fiber and other impurities of the liquid. It can be widely used in municipal sewage engineering, lotus pond culture, light industry, paper making, food, chemical industry, electricity industry, fiber, slurry and mixed suspension and other chemical media ideal impurity pump. ZSL diesel double suction self-priming pump is suitable for a variety of complex emergency rescue, fire and other occasions, not affected by the power supply, the use of the site and other factors, can move operation, high flexibility.

Performance parameter

Type description

ZSL strong self-priming. High lift. Large flow. Direct connection double priming self-priming pump range of use

1. the ambient temperature ≤50℃, medium temperature ≤80℃ Special requirements up to 200 ℃.

2. the medium PH value of cast iron material is 6 ~ 9, stainless steel is 2 ~ 13.

3. ZSL sewage type double suction self-priming pump use medium heavy but 1240kg/m3, sewage type of the same type of pump head less than water type 10%

4. the self-priming height can not exceed the specified value of 5 ~ 7 meters, the length of the suction tube is less than 10m.

5. ZSL sewage type double suction self-priming pump through the capacity of suspended particles diameter is about 20% of the pump caliber, fiber length pump caliber 5 times.

ZSL strong self-priming. High lift. Large flow. Direct connection double priming self-priming pump pump structure diagram

Parametric chart

Serial number	Model	Flow rat em3/h	Head m	Efficiency %	Power kW	Rotational speed n r/min	Cavitation allowanc em	Imbibition height m	Imbibition time （S/5m）	Weight
1	100ZSL80-10-4.2-4	80	10	68.1	4	1450	2.0	5.5	100	230
2	100ZSL100-12-5.5-4	100	12	74.3	5.5	1450	2.5	6.0	100	260
3	100ZSL100-15-7.5-4	100	15	68.1	7.5	1450	2.5	6.0	100	280
4	100ZSL100-20-11-4	100	20	66.1	11	1450	2.5	6.5	100	320
5	100ZSL100-25-15-4	100	25	60.6	15	1450	2.5	7.0	100	330
6	100ZSL100-30-18.5-4	100	30	58.9	18.5	1450	2.5	7.0	100	360
7	100ZSL100-40-22-2	100	40	66.1	22	2900	2.5	7.0	100	360
8	100ZSL100-50-30-2	100	50	60.6	30	2900	2.5	7.0	100	440
9	100ZSL100-60-37-2	100	60	63.1	37	2900	2.5	7.0	100	450
10	100ZSL100-70-45-2	100	70	60.6	45	2900	2.5	7.0	100	530
11	100ZSL100-80-45-2	100	80	64.6	45	2900	2.5	5.5	100	540
12	150ZSL150-10-7.5-4	150	10	68.1	7.5	1450	2.5	6.0	100	330
13	150ZSL150-15-11-4	150	15	69.7	11	1450	2.5	6.0	100	340
14	150ZSL150-20-15-4	150	20	68.1	15	1450	2.5	6.5	100	370
15	150ZSL150-25-18.5-4	150	25	69.0	18.5	1450	2.5	6.5	100	420
16	150ZSL150-30-22-4	150	30	69.7	22	1450	2.5	7.0	100	480
17	150ZSL150-35-30-4	150	35	63.6	30	1450	2.5	7.0	100	660
18	150ZSL150-40-37-4	150	40	63.6	37	1450	2.5	7.0	100	680
19	150ZSL150-50-45-4	150	50	67.2	45	1450	2.5	7.0	100	720
20	150ZSL150-40-37-2	150	40	63.1	37	2900	2.5	7.0	100	480
21	150ZSL150-50-45-2	150	50	60.6	45	2900	2.5	7.0	100	540
22	150ZSL150-65-55-2	150	65	64.4	55	2900	2.5	7.0	100	720
23	150ZSL150-80-75-2	150	80	62.3	75	2900	2.5	7.0	100	880
24	150ZSL200-11-11-4	200	11	68.1	11	1450	2.5	5.5	100	340
25	150ZSL200-15-15-4	200	15	68.1	15	1450	2.5	6.0 0	100	370
26	150ZSL200-18-18.5-4	200	18	66.3	18.5	1450	2.5	6.0	100	420
27	150ZSL200-22-22-4	200	22	68.1	22	1450	2.5	6.5	100	480
28	150ZSL200-27-30-4	200	27	65.4	30	1450	2.5	7.0	100	660
29	150ZSL200-32-37-4	200	32	62.8	37	1450	2.5	7.0	100	680
30	150ZSL200-40-45-4	200	40	63.7	45	1450	2.5	7.0	100	720
31	150ZSL200-50-55-4	200	50	65.2	45	1450	2.5	7.0	100	860
32	150ZSL200-40-45-2	200	40	64.6	45	2900	2.5	7.0	100	540
33	150ZSL200-50-55-2	200	50	66.1	55	2900	2.5	7.0	100	720
34	150ZSL200-65-75-2	200	65	63.0	75	2900	2.5	7.0	100	880
35	150ZSL200-80-90-2	200	80	64.6	90	2900	2.5	7.0	100	950
36	150ZSL250-50-55-4	250	50	69.7	55	1450	2.5	7.0	100	860
37	200ZSL250-12-15-6	250	12	68.1	15	960	3.0	5.5	120	480
38	200ZSL250-15-18-6	250	15	69.0	18	960	3.0	6.0	120	520
39	200ZSL250-20-22-4	250	20	72.9	22	1450	3.0	6.0 0	120	620
40	200ZSL250-25-30-4	250	25	66.8	30	1450	3.0	6.0	120	710
41	200ZSL250-30-37-4	250	30	69.3	32	1450	3.0	6.5	120	820
42	200ZSL250-40-45-4	250	40	71.2	45	1450	3.0	6.5	120	850
43	200ZSL250-45-55-4	250	45	69.7	55	1450	3.0	7.0	120	920
44	200ZSL250-55-75-4	250	55	62.4	75	1450	3.0	7.0	120	980
45	200ZSL250-65-90-4	250	65	65.6	90	1450	3.0	7.0	120	1030
46	200ZSL300-10-15-6	300	10	72.7	15	960	3.0	5.5	120	480
47	200ZSL300-12-18.5-6	300	12	70.7	18.5	960	3.0	6.0	120	520
48	200ZSL300-15-22-4	300	15	74.3	22	1450	3.0	6.0	120	620
49	200ZSL300-20-30-4	300	20	72.7	30	1450	3.0	6.5	120	710
50	200ZSL300-25-37-4	300	25	73.6	37	1450	3.0	6.5	120	820
51	200ZSL300-30-45-4	300	30	72.7	45	1450	3.0	6.5	120	850
52	200ZSL300-40-55-4	300	40	74.3	55	1450	3.0	7.0	120	920
53	200ZSL300-50-75-4	300	50	68.1	75	1450	3.0	7.0	120	980
54	200ZSL300-55-75-4	300	55	74.9	75	1450	3.0	7.0	120	980
55	200ZSL300-60-90-4	300	60	68.1	90	1450	3.0	7.0	120	1030
56	200ZSL350-8-15-6	350	8	63.6	15	960	3.0	5.0	120	580
57	200ZSL350-11-18.5-6	350	11	70.9	18.5	960	3.0	5.5	120	620
58	200ZSL350-13-22-4	350	13	70.4	22	1450	3.0	5.5	120	620
59	200ZSL350-17-30-4	350	17	67.6	30	1450	3.0	6.0	120	710
60	200ZSL350-22-37-4	350	22	66.7	37	1450	3.0	6.5	120	820
61	200ZSL350-28-45-4	350	28	69.8	45	1450	3.0	6.5	120	850
62	200ZSL350-35-55-4	350	35	71.4	55	1450	3.0	7.0	120	920
63	200ZSL350-42-75-4	350	42	66.8	75	1450	3.0	7.0	120	980
64	200ZSL350-50-90-4	350	50	66.2	90	1450	3.0	7.0	120	1030
65	200ZSL350-60-110-4	350	60	65.0	110	1450	3.0	7.0	120	1120
66	200ZSL400-9-18.5-6	400	9	66.3	18.5	960	3.0	5.0	120	620
67	200ZSL400-11-22-6	400	11	68.1	22	960	3.0	5.5	120	710
68	200ZSL400-15-30-4	400	15	68.1	30	1450	3.0	6.0	120	710
69	200ZSL400-20-37-4	400	20	69.3	37	1450	3.0	6.5	120	820
70	200ZSL400-25-45-4	400	25	71.2	45	1450	3.0	6.5	120	850
71	200ZSL400-30-55-4	400	30	69.9	55	1450	3.0	7.0	120	920
72	200ZSL400-40-75-4	400	40	68.4	75	1450	3.0	7.0	120	980
73	200ZSL400-48-90-4	400	48	68.4	90	1450	3.0	7.0	120	1030
74	200ZSL400-55-110-4	400	55	64.1	110	1450	3.0	7.0	120	1120
75	200ZSL400-65-132-4	400	65	63.1	132	1450	3.0	7.0	120	1160
76	250ZSL500-12-30-6	500	12	64.1	30	960	4.0	5.5	150	1070
77	250ZSL500-15-37-4	500	15	65.0	37	1450	4.0	6.0	150	1070
78	250ZSL500-20-45-4	500	20	71.2	45	1450	4.0	6.0	150	1110
79	250ZSL500-25-55-4	500	25	72.9	55	1450	4.0	6.5	150	1220
80	250ZSL500-30-75-4	500	30	64.1	75	1450	4.0	6.5	150	1310
81	250ZSL500-35-90-4	500	35	62.3	90	1450	4.0	6.5	150	1360
82	250ZSL500-40-90-4	500	40	71.2	90	1450	4.0	6.5	150	1360
83	250ZSL600-10-30-6	600	10	64.1	30	960	4.0	5.5	150	1070
84	250ZSL600-13-37.0-4	600	13	67.6	37	1450	4.0	6.0	150	1070
85	250ZSL600-16-45.0-4	600	16	68.4	45	1450	4.0	6.0	150	1110
86	250ZSL600-22-55.0-4	600	22	76.9	55	1450	4.0	6.5	150	1220
87	250ZSL600-27-75.0-4	600	27	69.2	75	1450	4.0	6.5	150	1310
88	250ZSL600-32-90.0-4	600	32	68.4	90	1450	4.0	6.5	150	1360
89	250ZSL600-40-110-4	600	40	69.9	110	1450	4.0	6.5	150	1450
90	250ZSL600-48-132-4	600	48	69.9	132	1450	4.0	6.5	150	1490
91	250ZSL600-55-160-4	600	55	66.1	160	1450	4.0	6.5	150	1550
92	300ZSL800-10-37-6	800	10	69.3	37	960	5.0	5.5	150	1260
93	300ZSL800-13-45-6	800	13	74.1	45	960	5.0	5.5	150	1350
94	300ZSL800-16-55-6	800	16	74.6	55	960	5.0	5.5	150	1390
95	300ZSL800-20-75-4	800	20	68.4	75	1450	5.0	6.0	150	1350
96	300ZSL800-26-90-4	800	26	74.1	90	1450	5.0	6.5	150	1390
97	300ZSL800-32-110-4	800	32	74.6	110	1450	5.0	6.5	150	1480
98	300ZSL800-37-132-4	800	37	71.9	132	1450	5.0	6.5	150	1520
99	300ZSL800-42-160-4	800	42	67.3	160	1450	5.0	6.5	150	1580
100	300ZSL1000-8-37-6	1000	8	69.3	37	960	5.0	5.5	150	1260
101	300ZSL1000-10-45-6	1000	10	71.2	45	960	5.0	5.5	150	1350
102	300ZSL1000-12-55-6	1000	12	69.9	55	960	5.0	6.0	150	1390
103	300ZSL1000-16-75-4	1000	16	68.4	75	1450	5.0	6.0	150	1350
104	300ZSL1000-20-90-4	1000	20	71.2	90	1450	5.0	6.5	150	1390
105	300ZSL1000-25-110-4	1000	25	72.9	110	1450	5.0	6.5	150	1480
106	300ZSL1000-30-132-4	1000	30	72.9	132	1450	5.0	6.5	150	1520
107	300ZSL1000-35-160-4	1000	35	70.1	160	1450	5.0	6.5	150	1580
108	350ZSL1200-7-37-6	1200	7	72.8	37	960	5.0	5.5	150	1280
109	350ZSL1200-9-45-6	1200	9	76.9	45	960	5.0	5.5	150	1370
110	350ZSL1200-11-55-6	1200	11	66.7	55	960	5.0	5.5	150	1420
111	350ZSL1200-13-75-4	1200	13	72.7	75	1450	5.0	6.0	150	1370
112	350ZSL1200-17-90-4	1200	17	76.9	90	1450	5.0	6.0	150	1420
113	350ZSL1200-22-110-4	1200	22	75.8	110	1450	5.0	6.5	150	1510
114	350ZSL1200-26-132-4	1200	26	72.1	132	1450	5.0	6.5	150	1540
115	350ZSL1200-30-160-4	1200	30	67.3	160	1450	5.0	6.5	150	1620
116	350ZSL1200-35-200-4	1200	35	71.5	200	1450	5.0	6.5	150	1710
117	350ZSL1500-5.5-37-6	1500	5.5	74.8	37	960	5.0	6.5	150	1280
118	350ZSL1500-7-45-6	1500	7	78.7	45	960	5.0	5.5	150	1370
119	350ZSL1500-9-55-6	1500	9	70.5	55	960	5.0	5.5	150	1420
120	350ZSL1500-11-75-4	1500	11	74.8	75	1450	5.0	6.0	150	1370
121	350ZSL1500-14-90-4	1500	14	74.3	90	1450	5.0	6.0	150	1420
122	350ZSL1500-17-110-4	1500	17	74.3	110	1450	5.0	6.5	150	1510
123	350ZSL1500-20-132-4	1500	20	72.9	132	1450	5.0	6.5	150	1540
124	350ZSL1500-25-160-4	1500	25	75.1	160	1450	5.0	6.5	150	1620
125	350ZSL1500-30-200-4	1500	30	72.1	200	1450	5.0	6.5	150	1710
126	350ZSL1500-35-220-4	1500	35	76.5	220	1450	5.0	6.5	150	1820
127	400ZSL1800-10-90-6	1800	10	64.1	90	960	5.0	5.5	150	1650
128	400ZSL1800-12-110-6	1800	12	63.0	110	960	5.0	6.0	150	1750
129	400ZSL1800-15-132-6	1800	15	65.6	132	960	5.0	6.5	150	1860
130	400ZSL1800-18-160-4	1800	18	64.9	160	960	5.0	6.5	150	1920
131	400ZSL1800-24-200-6	1800	24	69.2	200	960	5.0	6.5	150	2100
132	400ZSL1800-26-220-6	1800	26	68.2	220	960	5.0	6.5	150	2200
133	400ZSL1800-30-250-6	1800	30	69.2	250	960	5.0	6.5	150	2500
134	400ZSL1800-32-280-4	1800	32	68.2	280	1450	5.0	6.5	150	2400
135	400ZSL1800-35-315-4	1800	35	64.1	315	1450	5.0	6.5	150	2550
136	400ZSL2000-9-90-6	2000	9	64.1	90	960	5.0	5.5	150	1650
137	400ZSL2000-11-110-6	2000	11	64.1	110	960	5.0	6.0	150	1750
138	400ZSL2000-14-132-6	2000	14	68	132	960	5.0	6.0	150	1860
139	400ZSL2000-17-160-6	2000	17	68.1	160	960	5.0	6.5	150	1920
140	400ZSL2000-22-200-6	2000	22	70.5	200	960	5.0	6.5	150	2100
141	400ZSL2000-24-220-6	2000	24	69.9	220	960	5.0	6.5	150	2200
142	400ZSL2000-28-250-6	2000	28	71.8	250	960	5.0	6.5	150	2500
143	400ZSL2000-30-280-4	2000	30	71.2	280	1450	5.0	6.5	150	2400
144	400ZSL2000-32-315-4	2000	32	65.1	315	1450	5.0	6.5	150	2550
145	500ZSL2200-8-90-6	2200	8	62.7	90	960	5.0	5.5	150	1680
146	500ZSL2200-10-110-6	2200	10	64.1	110	960	5.0	5.5	150	1780
147	500ZSL2200-12-132-6	2200	12	64.1	132	960	5.0	6.0	150	1880
148	500ZSL2200-15-160-6	2200	15	66.1	160	960	5.0	6.5	150	1950
149	500ZSL2200-20-200-6	2200	20	70.5	200	960	5.0	6.5	150	2130
150	500ZSL2200-22-220-6	2200	22	70.5	220	960	5.0	6.5	150	2230
151	500ZSL2200-25-250-6	2200	25	70.5	250	960	5.0	6.5	150	2530
152	500ZSL2200-28-280-4	2200	28	70.2	280	1450	5.0	6.5	150	2450
153	500ZSL2200-30-315-4	2200	30	69.6	315	1450	5.0	6.5	150	2600
