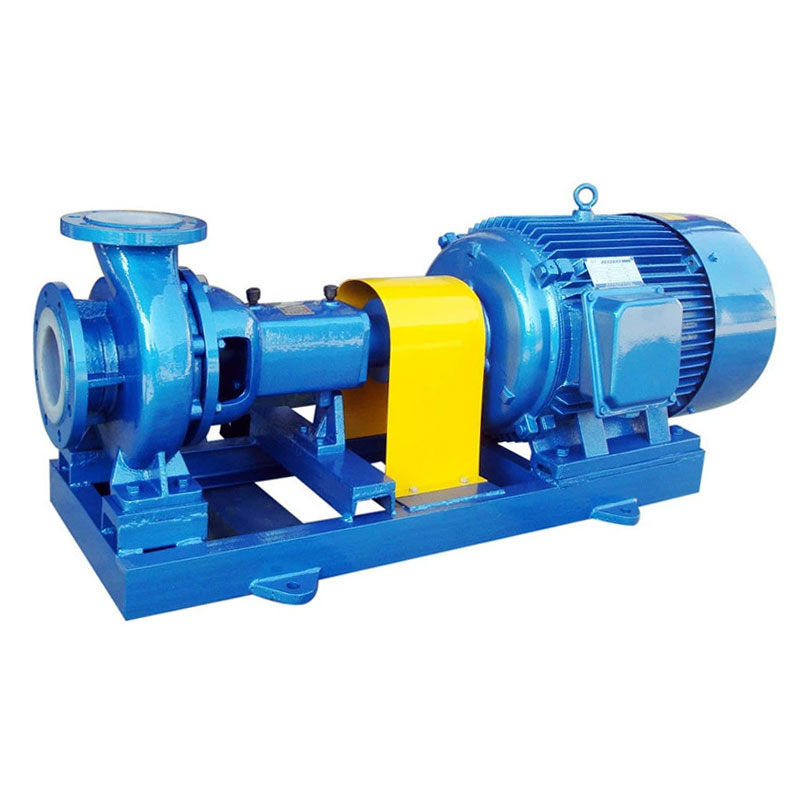

XWJ non-clogging pulp pump

XWJ type pulp pump can be widely used in light industry, paper industry in the temperature below 110℃, the concentration of less than 6% slurry transport, while pulp centrifugal pump can also be used in industrial and urban water supply, drainage and other occasions.

XWJ non-clogging pulp pump detailed introduction

XWJ type non-clogging pump is a new type, energy-saving pulp pump, after practical use, no or less leakage, good anti-clogging, stable operation, high reliability, compact structure and so on. It is mainly reflected in the following aspects: the use of semi-open or fully open impeller, the anti-wear plate and the impeller front and side clearance can be adjusted, the shaft seal is mainly mechanical seal and the selection of high-precision bearings (D precision) and shaft materials.

XWJ type pulp pump can be widely used in light industry, paper industry temperature below 110℃, concentration below 6% slurry transport, but also can be used in industrial and urban water supply, drainage and other occasions.

XWJ type non-clogging pulp pump structure brief introduction

1. XWJ type pulp pump is a single-stage single-suction cantilever structure, mainly composed of pump body, impeller, pump cover, anti-wear plate and suspension components;

2. from the motor end, the motor is rotated clockwise, and the pump is axially inhaled, radial (middle) discharge;

3. pump for the rear door structure, maintenance;

4. the pump shaft has two high-precision rolling bearing support, using thin oil lubrication (20 # oil);

5. Shaft seal adopts two forms of mechanical seal or packing;

6. the anti-wear plate and impeller front clearance can be adjusted by adjusting the screw;

7. pump and motor with pin coupling direct transmission.
