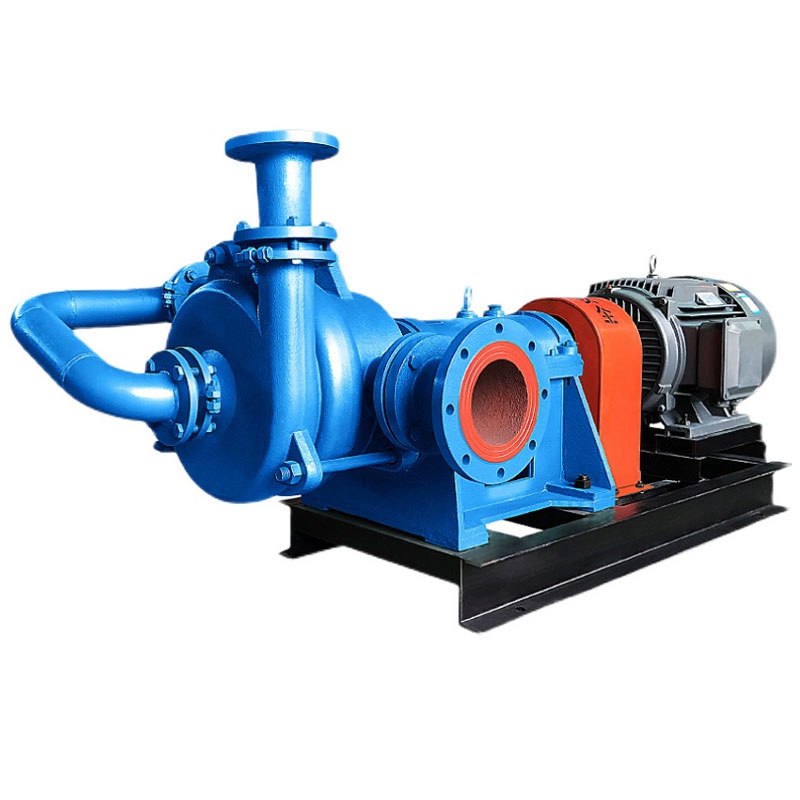

ZJE type filter press feed pump
ZJE type filter press feed pump
ZJE type filter press feed pump adopts hydraulic design and impeller installation mode to ensure that its performance curve is steeper than the general impurity pump, which is very suitable for the change of resistance when the filter press feed to achieve the purpose of large flow, low pressure feeding and small flow, high pressure filtration.
1. Product overview
The ZJE type filter press feed pump produced by our company is designed and developed by our company and the fluid machinery Institute of Jiangsu University of Science and Technology in combination with the feeding conditions of each filter press occasion.
After a variety of coal washing, aluminum plant, smelting and other occasions trial, its performance has reached the domestic level, once put on the market, its filter effect, filtration time, sewage blocking, no leakage and the stability of the whole machine are well received by users.
ZJE type filter press feed pump adopts hydraulic design and impeller installation mode to ensure that its performance curve is steeper than the general impurity pump, which is very suitable for the change of resistance when the filter press feed to achieve the purpose of large flow, low pressure feeding and small flow, high pressure filtration. Its special hydraulic performance coincides with the progressive process of the filter press from cavity to filling and then to filtration. At the beginning of feeding, the motor overload caused by excessive flow control without valve will not have an impact on the filter plate frame at the same time, which reduces the damage of the filter cloth on the filter plate frame, and will not impact the filter plate causing vibration, and the small flow and large pressure in the later stage of filter press is not easy to produce a suppressed pump. Especially in the late pressing period, with the impeller installation mode of the pump under large pressure and the role of the auxiliary impeller, the shaft seal basically achieves no leakage.
2. performance parameters
|
Model number |
Flow rate |
Head |
Rotational speed |
Tape power |
Matching filter press |
|
50ZJE65-22 |
20-70 |
30-65 |
1450 |
22 |
40-60 |
|
50ZJE75-30 |
20-70 |
35-75 |
1450 |
30 |
40-70 |
|
50ZJE76-37 |
20-100 |
30-76 |
1450 |
37 |
60-120 |
|
65ZJE80-45 |
35-125 |
35-80 |
1450 |
45 |
60-120 |
|
80ZJE65-45 |
40-140 |
30-65 |
1450 |
45 |
80-150 |
|
80ZJE75-55 |
50-160 |
35-75 |
1450 |
55 |
80-150 |
|
100ZJE75-75 |
70-245 |
30-75 |
1450 |
75 |
100-200 |
|
100ZJE80-90 |
50-280 |
35-80 |
1450 |
90 |
100-200 |
|
125ZJE70-90 |
80-300 |
30-70 |
1450 |
90 |
150-250 |
|
150ZJE75-110 |
80-330 |
35-75 |
1450 |
110 |
150-300 |
