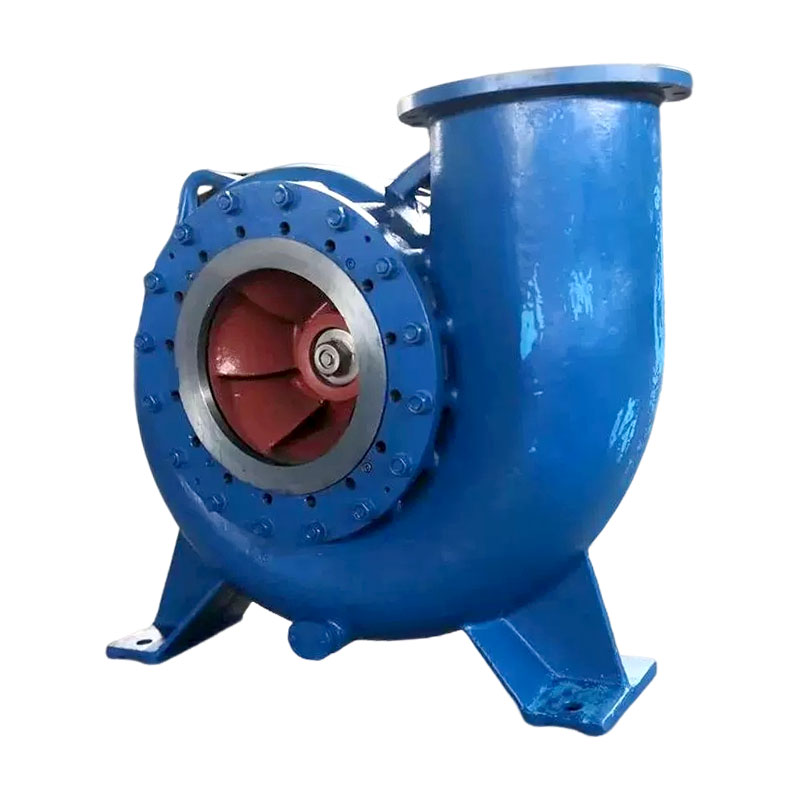

ZT series desulfurization pump

Features and uses:

ZT series desulfurization pump is axial suction, single stage single suction, cantilever centrifugal structure. This series of pumps in the water design, structural design and flow parts used in the material, the comprehensive application of similar products at home and abroad and innovation. It has the characteristics of energy saving, abrasion resistance, low vibration, low noise, reliable operation, long service life, etc. The comprehensive performance of the pump is at the domestic level. It is widely used to transport limestone or gypsum slurry in desulfurization systems in thermal power generation, aluminum smelting and oil refining industries. The allowable slurry weight concentration Cw is 60%, the chloride ion content of the slurry can reach 6000ppm, the PH value of the slurry is allowed to be between 2.5-13, and the slurry temperature is ≤65℃.

Product model description:

For example: 200ZT-45B

200: pump outlet diameter (mm)

Z: Impurity pump

T: Desulfurization

45: Impeller diameter (cm)

B: The number of impeller blades is 4; A is 5 (can be omitted), B is 4, C is 3, F is 6, G is 7, and H is 8.

ZT series desulfurization pump performance parameter table:

Model number	Allowed with powe rN(kw)	Flow rate Q(m3/h)	Head H(m)	Spin speed n(r/m)	Efficiency η(％)	cavitation margin (m)	Intermittent pass size (mm)	Pump weight T(kg)
800ZT-90	900	3142-9700	6.0-28.7	300-592	89.3	2.0	181	5900
700ZT-84	630	2157-7360	5.2-24.5	300-591	88.8	2.0	168	5420
600ZT-82	500	1664-5600	5.2-27.8	300-595	88.3	2.2	152	4900
500ZT-85	400	1036-4080	5.7-26.8	300-591	84.7	3.1	135	4500
350ZT-78	500	720-2865	11.6-51.1	400-740	78.0	3.5	104	3700
300ZT-60	400	580-2403	8.9-53.1	490-989	81.1	4.3	96	2790
200ZT-45B	90	138-645	5.7-31.0	490-990	80.8	2.0	51	1750
150ZT-55B	132	139-630	11.3-53.7	490-990	78.1	2.3	56	1540
150ZT-50B	90	62-279	9.3-44.6	490-980	65.7	2.1	30	1470
150ZT-50	90	63-279	9.3-44.6	490-990	65.7	2.1	30	1470
150ZT-40	132	122-503	11.2-61.2	700-1490	73.1	2.6	40	830
100ZT-45B	90	41-219	12.1-76.4	700-1480	51.8	2.4	24	800
100ZT-40B	75	61-268	12.0-61.0	700-1480	70.4	1.7	29	620
100ZT-35	75	77-323	8.8-45.9	700-1480	70.4	1.9	42	550
80ZT-36	37	41-167	8.9-47.1	700-1480	62.4	1.5	16	480
65ZT-40	55	34-159	12.2-63.2	700-1480	62.1	2.1	16	490
65ZT-30	22	21-99	7.0-35.6	700-1470	54.6	2.2	19	260
50ZT-40D	30	16-76	9.5-51.7	700-1480	45.1	1.2	10	320
50ZT-30	18.5	16-78	6.1-36.3	700-1460	48.5	0.8	16	210
40ZT-25	45	16.8-74.7	13.7-88.6	1400-2950	42.5	2.6	9	185
40ZT-20B	15	7.9-37.1	10.7-57.5	1400-2930	53.0	0.9	7	160
40ZT-19	15	7.8-34.9	12.3-57.1	1400-2930	58.8	1.2	11	173
40ZT-17	7.5	4.6-23.4	9.2-44.6	1400-2900	52.4	2.5	11	127
25ZT-25	4	4.7-19.9	3.3-21.6	700-1440	38.0	3.3	5	107
25ZT-15	5.5	4.4-19.3	6.2-34.4	1390-2900	41.8	1.3	8	89
