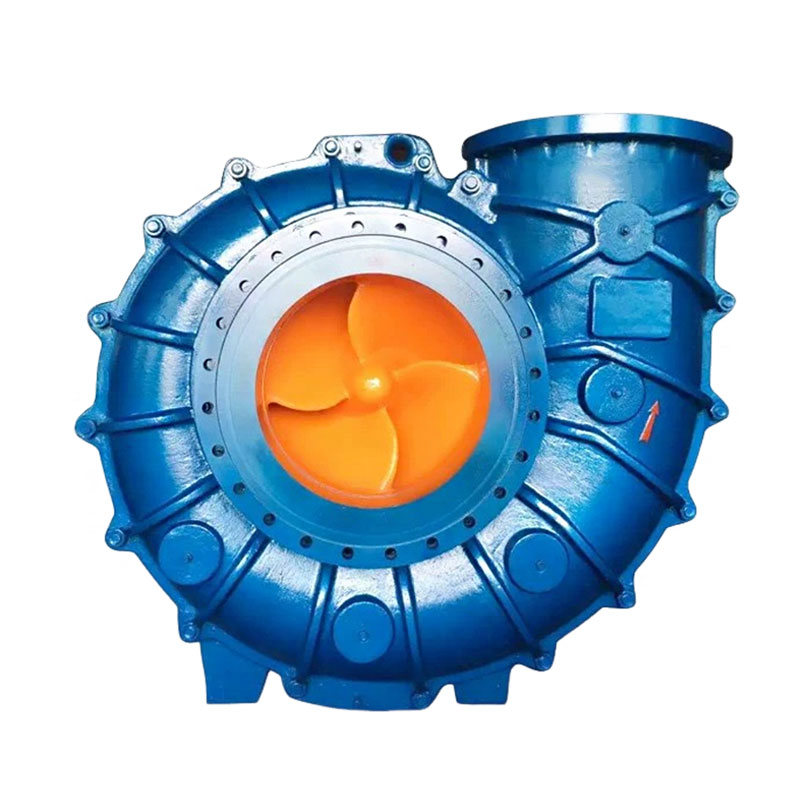

ZTX series desulfurization pump
ZTX series desulfurization pump
Structural features:
1. Double pump housing structure with replaceable cemented carbide lining or rubber lining has good corrosion resistance and high reliability.
2. Post-disassembly structure, without disassembling the inlet and outlet pipes, easy to check or replace the impeller and mechanical seal.
3. Cemented carbide impeller.
4. Oil-lubricated, high-capacity bearing assembly.
5. The shaft seal is packaged mechanical seal with long life and less maintenance.
6. Design of direct connection between pump and drive machine.
Product advantages:
1. Long life of wearing parts
2. Long life of bearing and mechanical seal
3. Easy maintenance
4. Low operating costs
5. High reliability
Model meaning Description:
Such as: 350ZTX(R)
350: Pump outlet diameter (mm)
Z: Impurity pump
T: Desulfurization
X: Bracket form
R: Rubber
ZTX series desulfurization pump performance parameter table
| Model number |
Flow rate Q |
Head H |
Rotational speed n |
Efficiency η |
Cavitation allowance |
Discharge diameter |
Suction diameter |
|
350ZTX(R) |
1600 |
25 |
960 |
82 |
4.5 |
350 |
400 |
|
400ZTX(R) |
2500 |
25 |
725 |
83 |
5.0 |
400 |
450 |
|
500ZTX(R) |
3750 |
25 |
725 |
85 |
5.0 |
500 |
500 |
|
600ZTX(R) |
6300 |
25.5 |
620 |
88 |
5.5 |
600 |
700 |
|
700ZTX(R) |
6840 |
26 |
485 |
87 |
6.0 |
700 |
800 |
|
800ZTX(R) |
9360 |
31 |
485 |
90 |
7.0 |
800 |
900 |
|
900ZTX(R) |
15000 |
30 |
485 |
90 |
8.5 |
900 |
1000 |
|
1000ZTX |
10440 |
15 |
485 |
89 |
7.0 |
1000 |
1200 |
