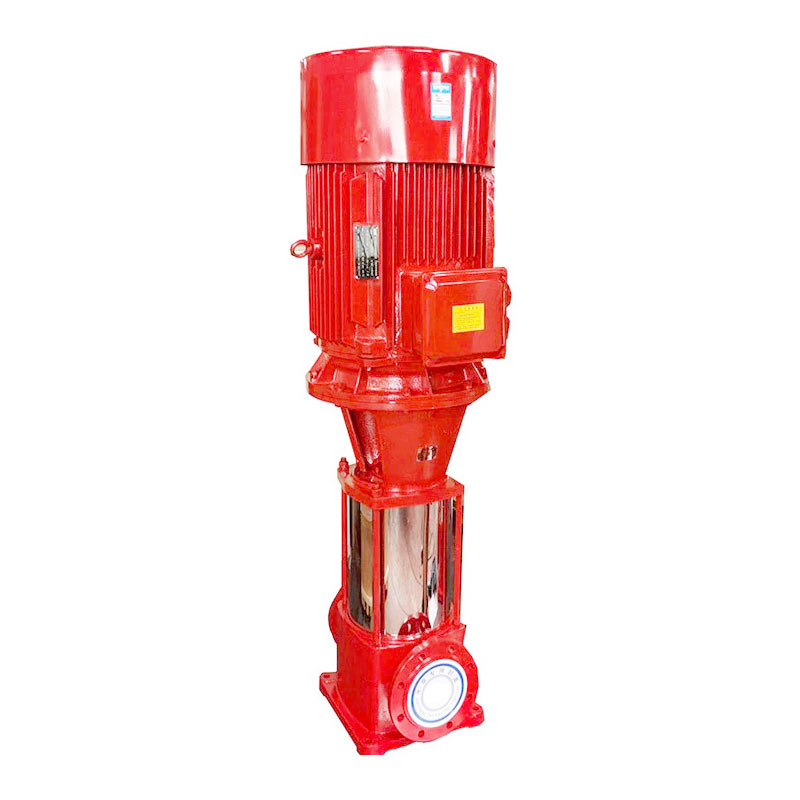

XBD-HY constant pressure buffer multistage fire pump
XBD-HY constant pressure buffer multistage fire pump
XBD-HY constant pressure buffer multistage fire pump
Product characteristics
1. no matter how the flow, inlet pressure changes, the head is constant, truly meet the national fire code.
2. can be free to adjust the head within the specified range.
3. the use of stainless steel, water pump rust, instant start.
4. with slow closing check function.
Product overview
XBD-HY type constant pressure buffer multistage centrifugal fire pump is a new product developed by our company according to market needs. Its performance and technical conditions meet the requirements of the national newly promulgated GB6245-1998 "Fire pump performance requirements and test methods" standard.
Performance parameter
The product is divided into 12 specifications, 85 models, can meet the needs of users and various flow and head, the main uses are as follows:
1. Fire water supply
2. Domestic water supply
3. Cooling system
4, water washing
5. Water supply and drainage
6. boiler water supply
Parametric chart
| Model number | Flow rate | Outlet pressure | Rotational speed | Motor power |
| L/S | MPa | r/min | KW | |
| XBD3/5-50HY | 0～5 | 0.3 | 2970 | 3 |
| XBD4/5-50HY | 0.4 | 4 | ||
| XBD5/5-50HY | 0.5 | 5.5 | ||
| XBD6/5-50HY | 0.6 | 7.5 | ||
| XBD7/5-50HY | 0.7 | 11 | ||
| XBD8/5-50HY | 0.8 | 15 | ||
| XBD3/10-65HY | 0～10 | 0.3 | 5.5 | |
| XBD4/10-65HY | 0.4 | 7.5 | ||
| XBD5/10-65HY | 0.5 | 11 | ||
| XBD6/10-65HY | 0.6 | 11 | ||
| XBD7/10-65HY | 0.7 | 15 | ||
| XBD8/10-65HY | 0.8 | 18.5 | ||
| XBD9/10-65HY | 0.9 | 22 | ||
| XBD10/10-65HY | 1 | 22 | ||
| XBD3/15-65HY | 0～15 | 0.3 | 7.5 | |
| XBD4/15-65HY | 0.4 | 11 | ||
| XBD5/15-65HY | 0.5 | 15 | ||
| XBD6/15-65HY | 0.6 | 15 | ||
| XBD7/15-65HY | 0.7 | 18.5 | ||
| XBD8/15-65HY | 0.8 | 22 | ||
| XBD9/15-65HY | 0.9 | 30 | ||
| XBD10/15-65HY | 1 | 30 | ||
| XBD11/15-65HY | 1.1 | 37 | ||
| XBD12/15-65HY | 1.2 | 37 | ||
| XBD3/20-80HY | 0～20 | 0.3 | 11 | |
| XBD4/20-80HY | 0.4 | 15 | ||
| XBD5/20-80HY | 0.5 | 18.5 | ||
| XBD6/20-80HY | 0.6 | 22 | ||
| XBD7/20-80HY | 0.7 | 22 | ||
| XBD8/20-80HY | 0.8 | 30 | ||
| XBD9/20-80HY | 0.9 | 37 | ||
| XBD10/20-80HY | 1 | 37 | ||
| XBD11/20-80HY | 1.1 | 37 | ||
| XBD12/20-80HY | 1.2 | 45 | ||
| XBD13/20-80HY | 1.3 | 45 | ||
| XBD14/20-80HY | 1.4 | 55 | ||
| XBD15/20-80HY | 1.5 | 55 | ||
| XBD16/20-80HY | 1.6 | 55 | ||
| XBD17/20-80HY | 1.7 | 75 | ||
| XBD18/20-80HY | 1.8 | 75 | ||
| XBD19/20-80HY | 1.9 | 75 | ||
| XBD20/20-80HY | 2 | 75 | ||
| XBD21/20-80HY | 2.1 | 90 | ||
| XBD22/20-80HY | 2.2 | 90 | ||
| XBD3/30-100HY | 0～30 | 0.3 | 22 | |
| XBD4/30-100HY | 0.4 | 30 | ||
| XBD5/30-100HY | 0.5 | 30 | ||
| XBD6/30-100HY | 0.6 | 37 | ||
| XBD7/30-100HY | 0.7 | 37 | ||
| XBD8/30-100HY | 0.8 | 45 | ||
| XBD9/30-100HY | 0.9 | 45 | ||
| XBD10/30-100HY | 1 | 55 | ||
| XBD11/30-100HY | 1.1 | 55 | ||
| XBD12/30-100HY | 1.2 | 75 | ||
| XBD13/30-100HY | 1.3 | 75 | ||
| XBD14/30-100HY | 1.4 | 75 | ||
| XBD15/30-100HY | 1.5 | 75 | ||
| XBD16/30-100HY | 1.6 | 90 | ||
| XBD17/30-100HY | 1.7 | 90 | ||
| XBD18/30-100HY | 1.8 | 90 | ||
| XBD19/30-100HY | 1.9 | 90 | ||
| XBD20/30-100HY | 2 | 110 | ||
| XBD21/30-100HY | 2.1 | 110 | ||
| XBD22/30-100HY | 2.2 | 110 | ||
| XBD23/30-100HY | 2.3 | 132 | ||
| XBD24/30-100HY | 2.4 | 132 | ||
| XBD25/30-100HY | 2.5 | 160 | ||
| XBD26/30-100HY | 2.6 | 160 | ||
| XBD3/40-125HY | 0～40 | 0.3 | 22 | |
| XBD4/40-125HY | 0.4 | 30 | ||
| XBD5/40-125HY | 0.5 | 45 | ||
| XBD6/40-125HY | 0.6 | 45 | ||
| XBD7/40-125HY | 0.7 | 55 | ||
| XBD8/40-125HY | 0.8 | 75 | ||
| XBD9/40-125HY | 0.9 | 75 | ||
| XBD10/40-125HY | 1 | 75 | ||
| XBD11/40-125HY | 1.1 | 75 | ||
| XBD12/40-125HY | 1.2 | 90 | ||
| XBD13/40-125HY | 1.3 | 90 | ||
| XBD14/40-125HY | 1.4 | 90 | ||
| XBD15/40-125HY | 1.5 | 110 | ||
| XBD16/40-125HY | 1.6 | 110 | ||
| XBD17/40-125HY | 1.7 | 110 | ||
| XBD18/40-125HY | 1.8 | 110 | ||
| XBD19/40-125HY | 1.9 | 132 | ||
| XBD20/40-125HY | 2 | 160 | ||
| XBD21/40-125HY | 2.1 | 160 | ||
| XBD22/40-125HY | 2.2 | 160 | ||
| XBD23/40-125HY | 2.3 | 200 | ||
| XBD24/40-125HY | 2.4 | 200 | ||
| XBD25/40-125HY | 2.5 | 200 | ||
| XBD26/40-125HY | 2.6 | 200 | ||
| XBD3/50-125HY | 0～50 | 0.3 | 2970 | 30 |
| XBD4/50-125HY | 0.4 | 37 | ||
| XBD5/50-125HY | 0.5 | 37 | ||
| XBD6/50-125HY | 0.6 | 45 | ||
| XBD7/50-125HY | 0.7 | 55 | ||
| XBD8/50-125HY | 0.8 | 55 | ||
| XBD9/50-125HY | 0.9 | 75 | ||
| XBD10/50-125HY | 1 | 75 | ||
| XBD11/50-125HY | 1.1 | 90 | ||
| XBD12/50-125HY | 1.2 | 90 | ||
| XBD13/50-125HY | 1.3 | 110 | ||
| XBD14/50-125HY | 1.4 | 132 | ||
| XBD15/50-125HY | 1.5 | 132 | ||
| XBD16/50-125HY | 1.6 | 160 | ||
| XBD17/50-125HY | 1.7 | 160 | ||
| XBD18/50-125HY | 1.8 | 160 | ||
| XBD19/50-125HY | 1.9 | 200 | ||
| XBD20/50-125HY | 2 | 200 | ||
| XBD21/50-125HY | 2.1 | 200 | ||
| XBD22/50-125HY | 2.2 | 200 | ||
| XBD23/50-125HY | 2.3 | 200 | ||
| XBD24/50-125HY | 2.4 | 250 | ||
| XBD25/50-125HY | 2.5 | 250 | ||
| XBD26/50-125HY | 2.6 | 250 | ||
| XBD3/60-150HY | 0～60 | 0.3 | 30 | |
| XBD4/60-150HY | 0.4 | 37 | ||
| XBD5/60-150HY | 0.5 | 45 | ||
| XBD6/60-150HY | 0.6 | 55 | ||
| XBD7/60-150HY | 0.7 | 55 | ||
| XBD8/60-150HY | 0.8 | 75 | ||
| XBD9/60-150HY | 0.9 | 75 | ||
| XBD10/60-150HY | 1 | 90 | ||
| XBD11/60-150HY | 1.1 | 90 | ||
| XBD12/60-150HY | 1.2 | 110 | ||
| XBD13/60-150HY | 1.3 | 132 | ||
| XBD14/60-150HY | 1.4 | 160 | ||
| XBD15/60-150HY | 1.5 | 160 | ||
| XBD16/60-150HY | 1.6 | 200 | ||
| XBD17/60-150HY | 1.7 | 200 | ||
| XBD18/60-150HY | 1.8 | 200 | ||
| XBD19/60-150HY | 1.9 | 250 | ||
| XBD20/60-150HY | 2 | 250 | ||
| XBD21/60-150HY | 2.1 | 250 | ||
| XBD22/60-150HY | 2.2 | 250 | ||
| XBD23/60-150HY | 2.3 | 250 | ||
| XBD24/60-150HY | 2.4 | 315 | ||
| XBD25/60-150HY | 2.5 | 315 | ||
| XBD26/60-150HY | 2.6 | 315 | ||
| XBD3/70-150HY | 0～70 | 0.3 | 37 | |
| XBD4/70-150HY | 0.4 | 45 | ||
| XBD5/70-150HY | 0.5 | 55 | ||
| XBD6/70-150HY | 0.6 | 75 | ||
| XBD7/70-150HY | 0.7 | 75 | ||
| XBD8/70-150HY | 0.8 | 90 | ||
| XBD9/70-150HY | 0.9 | 90 | ||
| XBD10/70-150HY | 1 | 90 | ||
| XBD11/70-150HY | 1.1 | 110 | ||
| XBD12/70-150HY | 1.2 | 110 | ||
| XBD13/70-150HY | 1.3 | 132 | ||
| XBD14/70-150HY | 1.4 | 132 | ||
| XBD15/70-150HY | 1.5 | 160 | ||
| XBD16/70-150HY | 1.6 | 160 | ||
| XBD17/70-150HY | 1.7 | 200 | ||
| XBD18/70-150HY | 1.8 | 250 | ||
| XBD19/70-150HY | 1.9 | 250 | ||
| XBD20/70-150HY | 2 | 250 | ||
| XBD21/70-150HY | 2.1 | 315 | ||
| XBD22/70-150HY | 2.2 | 315 | ||
| XBD23/70-150HY | 2.3 | 315 | ||
| XBD24/70-150HY | 2.4 | 315 | ||
| XBD25/70-150HY | 2.5 | 315 | ||
| XBD26/70-150HY | 2.6 | 315 | ||
| XBD3/80-150HY | 0～80 | 0.3 | 45 | |
| XBD4/80-150HY | 0.4 | 55 | ||
| XBD5/80-150HY | 0.5 | 75 | ||
| XBD6/80-150HY | 0.6 | 90 | ||
| XBD7/80-150HY | 0.7 | 90 | ||
| XBD8/80-150HY | 0.8 | 110 | ||
| XBD9/80-150HY | 0.9 | 132 | ||
| XBD10/80-150HY | 1 | 132 | ||
| XBD11/80-150HY | 1.1 | 160 | ||
| XBD12/80-150HY | 1.2 | 160 | ||
| XBD13/80-150HY | 1.3 | 160 | ||
| XBD14/80-150HY | 1.4 | 185 | ||
| XBD15/80-150HY | 1.5 | 185 | ||
| XBD16/80-150HY | 1.6 | 200 | ||
| XBD17/80-150HY | 1.7 | 220 | ||
| XBD18/80-150HY | 1.8 | 220 | ||
| XBD19/80-150HY | 1.9 | 250 | ||
| XBD20/80-150HY | 2 | 250 | ||
| XBD21/80-150HY | 2.1 | 280 | ||
| XBD22/80-150HY | 2.2 | 280 | ||
| XBD23/80-150HY | 2.3 | 280 | ||
| XBD24/80-150HY | 2.4 | 315 | ||
| XBD25/80-150HY | 2.5 | 315 | ||
| XBD26/80-150HY | 2.6 | 315 |
