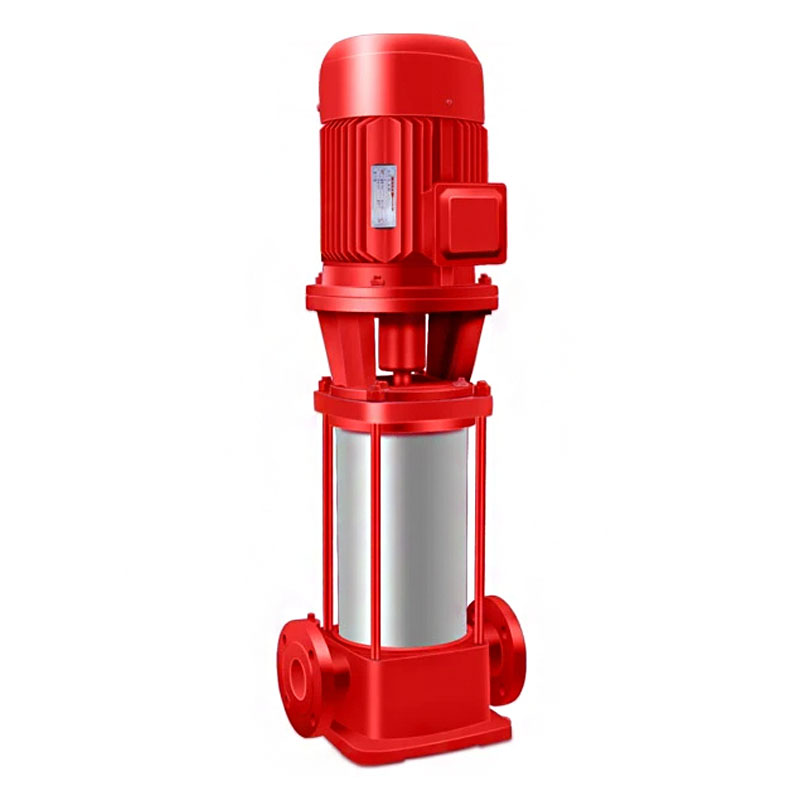

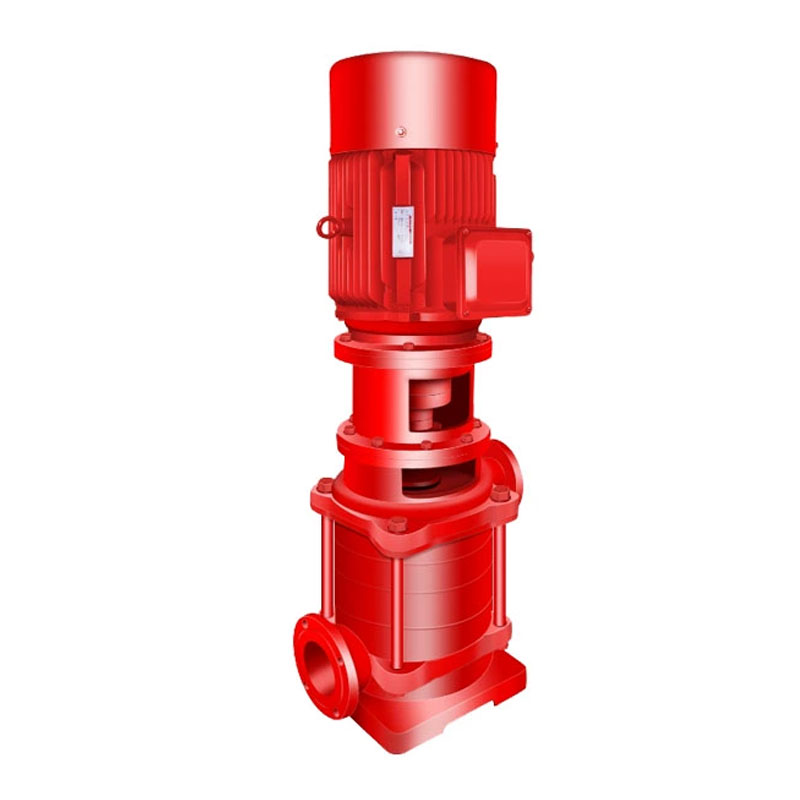

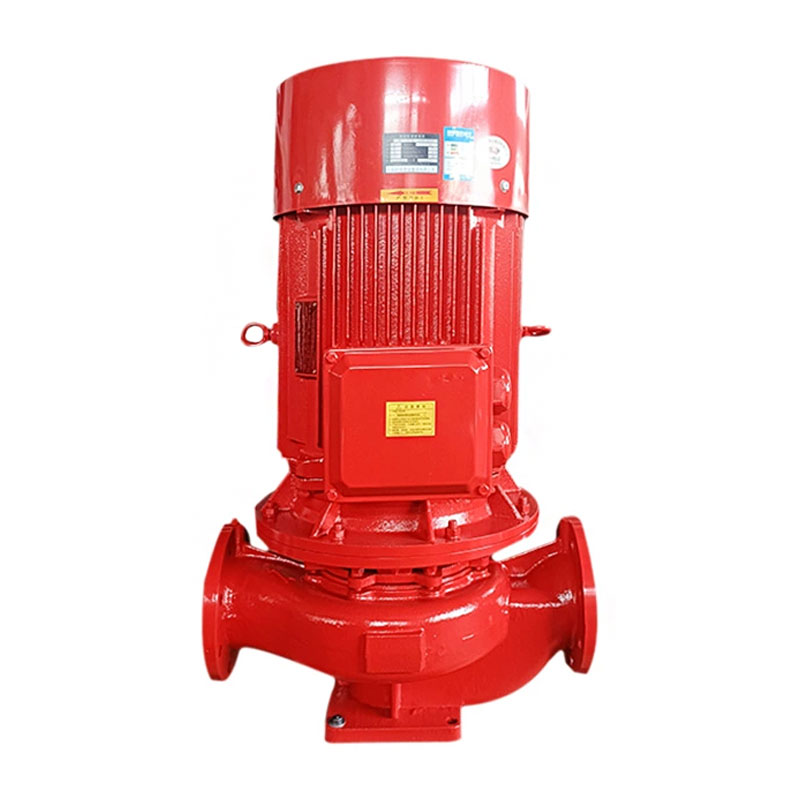

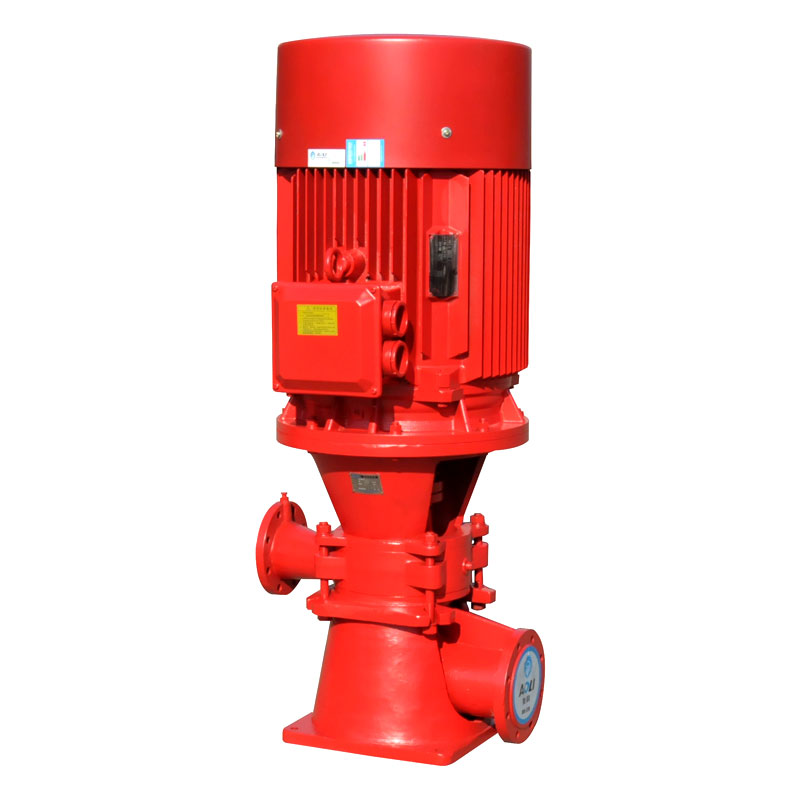

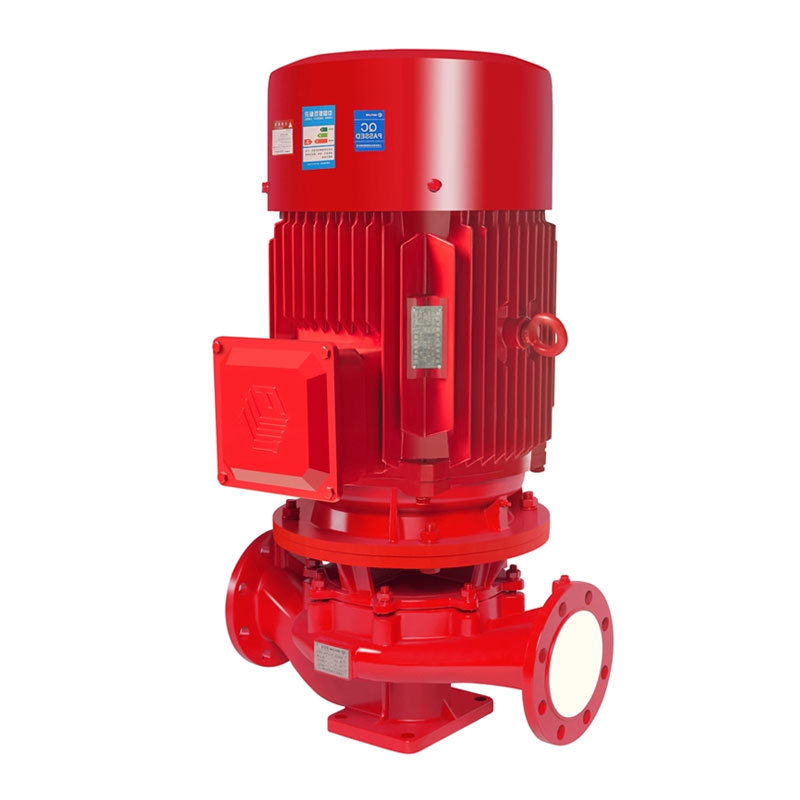

XBD-GDL vertical multistage pipeline fire pump
Product characteristics
1. The hydraulic model has high efficiency and wide performance range.
2. vertical structure, small footprint.
3. small vibration, low noise, the use of hydraulic balance axial force, so that the pump runs smoothly and reliably.
4. pump into, outlet on the same horizontal axis, and the same caliber specifications, easy to connect the pipeline, loading and unloading is very convenient.
Product overview
XBD-(GDL) vertical single-suction multistage pipeline type fire pump group is a new generation of XBD pipeline type medium and low pressure fire pump group products developed according to the standard requirements of fire pump based on the original vertical multistage pipeline pump. For the transport of clean water without solid particles and liquids with physical and chemical properties similar to water. Suitable for various occasions such as residential, hotels, office buildings, commercial buildings, factories, hospitals and other places of fire water supply.
The performance and technical conditions of XBD-GDL series fire pump produced by the company meet the requirements of the newly issued GB6245-1998 "Fire pump performance requirements and test methods" standard, the product has passed the test of the national fire equipment Quality supervision and testing center, and has obtained the Shanghai Fire product approval certificate.
All the products of the division are designed and optimized by computer. The company has strong technical force, rich production experience and testing means, and the product quality is stable and reliable.
Performance parameter
Flow rate: 0.5-45L/S;
Pressure: 0.2-2.0Mpa;
Power: 1.1-90KW;
Speed: 2900r/min;
Diameter: Phi 25-Phi 150mm;
Temperature range: ≤80℃.
Parametric chart
| Model number |
Flow rat |
Head |
Suction stroke |
Motor power |
| 25GDL2-12*3 | 2 | 36 | 7.5 | 1.1 |
| 25GDL2-12*4 | 2 | 48 | 7.5 | 1.1 |
| 25GDL2-12*5 | 2 | 60 | 7.5 | 1.5 |
| 25GDL2-12*6 | 2 | 72 | 7.5 | 1.5 |
| 25GDL2-12*7 | 2 | 84 | 7.5 | 2.2 |
| 25GDL2-12*8 | 2 | 96 | 7.5 | 2.2 |
| 25GDL2-12*9 | 2 | 108 | 7.5 | 2.2 |
| 25GDL2-12*10 | 2 | 120 | 7.5 | 3 |
| 25GDL2-12*11 | 2 | 132 | 7.5 | 3 |
| 25GDL2-12*12 | 2 | 144 | 7.5 | 3 |
| 25GDL2-12*13 | 2 | 156 | 7.5 | 4 |
| 25GDL2-12*14 | 2 | 168 | 7.5 | 4 |
| 25GDL2-12*15 | 2 | 180 | 7.5 | 4 |
| 25GDL4-11*3 | 4 | 33 | 7.5 | 1.1 |
| 25GDL4-11*4 | 4 | 44 | 7.5 | 1.5 |
| 25GDL4-11*5 | 4 | 55 | 7.5 | 2.2 |
| 25GDL4-11*6 | 4 | 66 | 7.5 | 2.2 |
| 25GDL4-11*7 | 4 | 77 | 7.5 | 3 |
| 25GDL4-11*8 | 4 | 88 | 7.5 | 3 |
| 25GDL4-11*9 | 4 | 99 | 7.5 | 3 |
| 25GDL4-11*10 | 4 | 110 | 7.5 | 4 |
| 25GDL4-11*11 | 4 | 121 | 7.5 | 4 |
| 25GDL4-11*12 | 4 | 132 | 7.5 | 4 |
| 25GDL4-11*13 | 4 | 143 | 7.5 | 4 |
| 25GDL4-11*14 | 4 | 154 | 7.5 | 4 |
| 25GDL4-11*15 | 4 | 165 | 7.5 | 5.5 |
| 40GDL6-12*3 | 6 | 36 | 7.5 | 1.5 |
| 40GDL6-12*4 | 6 | 48 | 7.5 | 2.2 |
| 40GDL6-12*5 | 6 | 60 | 7.5 | 2.2 |
| 40GDL6-12*6 | 6 | 72 | 7.5 | 3 |
| 40GDL6-12*7 | 6 | 84 | 7.5 | 3 |
| 40GDL6-12*8 | 6 | 96 | 7.5 | 4 |
| 40GDL6-12*9 | 6 | 108 | 7.5 | 4 |
| 40GDL6-12*10 | 6 | 120 | 7.5 | 4 |
| 40GDL6-12*11 | 6 | 132 | 7.5 | 5.5 |
| 40GDL6-12*12 | 6 | 144 | 7.5 | 7.5 |
| 40GDL6-12*13 | 6 | 156 | 7.5 | 7.5 |
| 40GDL6-12*14 | 6 | 168 | 7.5 | 7.5 |
| 40GDL6-12*15 | 6 | 180 | 7.5 | 7.5 |
| 50GDL12-15*2 | 12 | 30 | 7.5 | 2.2 |
| 50GDL12-15*3 | 12 | 45 | 7 | 3 |
| 50GDL12-15*4 | 12 | 60 | 7 | 4 |
| 50GDL12-15*5 | 12 | 75 | 7 | 5.5 |
| 50GDL12-15*6 | 12 | 90 | 7 | 5.5 |
| 50GDL12-15*7 | 12 | 105 | 7 | 7.5 |
| 50GDL12-15*8 | 12 | 120 | 7 | 7.5 |
| 50GDL12-15*9 | 12 | 135 | 7 | 11 |
| 50GDL12-15*10 | 12 | 150 | 7 | 11 |
| 50GDL18-15*2 | 18 | 30 | 7 | 3 |
| 50GDL18-15*3 | 18 | 45 | 7 | 4 |
| 50GDL18-15*4 | 18 | 60 | 7 | 5.5 |
| 50GDL18-15*5 | 18 | 75 | 7 | 7.5 |
| 50GDL18-15*6 | 18 | 90 | 7 | 7.5 |
| 50GDL18-15*7 | 18 | 105 | 7 | 11 |
| 50GDL18-15*8 | 18 | 120 | 7 | 11 |
| 50GDL18-15*9 | 18 | 135 | 7 | 15 |
| 50GDL18-15*10 | 18 | 150 | 7 | 15 |
| 65GDL24-12*2 | 24 | 24 | 6 | 3 |
| 65GDL24-12*3 | 24 | 36 | 6 | 4 |
| 65GDL24-12*4 | 24 | 48 | 6 | 5.5 |
| 65GDL24-12*5 | 24 | 60 | 6 | 7.5 |
| 65GDL24-12*6 | 24 | 72 | 6 | 7.5 |
| 65GDL24-12*7 | 24 | 84 | 6 | 11 |
| 65GDL24-12*8 | 24 | 96 | 6 | 11 |
| 65GDL24-12*9 | 24 | 108 | 6 | 15 |
| 65GDL24-12*10 | 24 | 120 | 6 | 15 |
| 65GDL24-12*11 | 24 | 132 | 6 | 15 |
| 65GDL24-12*12 | 24 | 144 | 6 | 18.5 |
| 80GDL36-12*2 | 36 | 24 | 5.5 | 4 |
| 80GDL36-12*3 | 36 | 36 | 5.5 | 5.5 |
| 80GDL36-12*4 | 36 | 48 | 5.5 | 7.5 |
| 80GDL36-12*5 | 36 | 60 | 5.5 | 11 |
| 80GDL36-12*6 | 36 | 72 | 5.5 | 11 |
| 80GDL36-12*7 | 36 | 84 | 5.5 | 15 |
| 80GDL36-12*8 | 36 | 96 | 5.5 | 15 |
| 80GDL36-12*9 | 36 | 108 | 5.5 | 18.5 |
| 80GDL36-12*10 | 36 | 120 | 5.5 | 18.5 |
| 80GDL54-14*2 | 54 | 28 | 5 | 7.5 |
| 80GDL54-14*3 | 54 | 42 | 5 | 11 |
| 80GDL54-14*4 | 54 | 56 | 5 | 15 |
| 80GDL54-14*5 | 54 | 70 | 5 | 18.5 |
| 80GDL54-14*6 | 54 | 84 | 5 | 18.5 |
| 80GDL54-14*7 | 54 | 98 | 5 | 22 |
| 80GDL54-14*8 | 54 | 112 | 5 | 30 |
| 80GDL54-14*9 | 54 | 126 | 5 | 30 |
| 80GDL54-14*10 | 54 | 140 | 5 | 37 |
| 100GDL72-14*2 | 72 | 28 | 4.5 | 11 |
| 100GDL72-14*3 | 72 | 42 | 4.5 | 15 |
| 100GDL72-14*4 | 72 | 56 | 4.5 | 18.5 |
| 100GDL72-14*5 | 72 | 70 | 4.5 | 22 |
| 100GDL72-14*6 | 72 | 84 | 4.5 | 30 |
| 100GDL72-14*7 | 72 | 98 | 4.5 | 30 |
| 100GDL72-14*8 | 72 | 112 | 4.5 | 37 |
| 100GDL72-14*9 | 72 | 126 | 4.5 | 37 |
| 100GDL72-14*10 | 72 | 140 | 4.5 | 45 |
| 125GDL100-20*2 | 100 | 40 | 4.5 | 18.5 |
| 125GDL100-20*3 | 100 | 60 | 4.5 | 30 |
| 125GDL100-20*4 | 100 | 80 | 4.5 | 37 |
| 125GDL100-20*5 | 100 | 100 | 4.5 | 45 |
| 125GDL100-20*6 | 100 | 120 | 4.5 | 55 |
| 125GDL100-20*7 | 100 | 140 | 4.5 | 75 |
| 125GDL100-20*8 | 100 | 160 | 4.5 | 75 |
| 125GDL100-20*9 | 100 | 180 | 4.5 | 75 |
| 125GDL100-20*10 | 100 | 200 | 4.5 | 90 |
| 150GDL160-25*2 | 160 | 50 | 4.5 | 37 |
| 150GDL160-25*3 | 160 | 75 | 4.5 | 55 |
| 150GDL160-25*4 | 160 | 100 | 4.5 | 75 |
| 150GDL160-25*5 | 160 | 125 | 4.5 | 90 |
| 150GDL160-25*6 | 160 | 150 | 4.5 | 110 |
| 150GDL160-25*7 | 160 | 175 | 4.5 | 110 |
