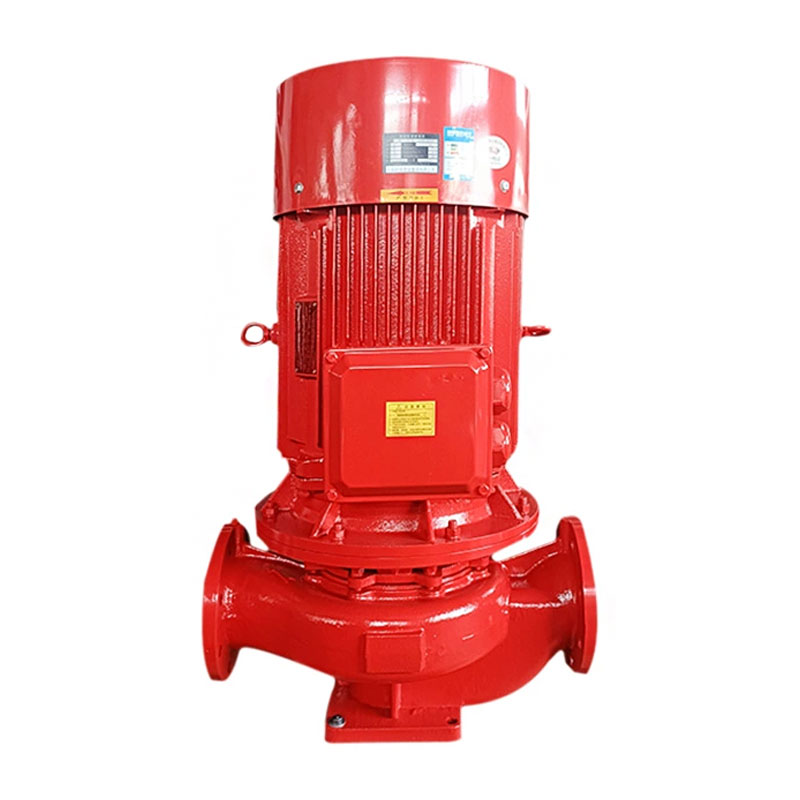

XBD-L vertical fire pump

Product characteristics

1. the pump structure is compact, small size, beautiful appearance, its vertical structure determines the installation area is small, coincidence in the center of the pump foot, thus enhancing the operation stability and service life of the pump.

2. the pump inlet and outlet are horizontal direction to simplify the connection of the pipeline.

3. XBD-ISG type vertical fire pump multi-stage type can be installed according to needs, suction inlet and outlet can be installed in the same direction or 90°, 180°, 270° several different directions to meet different connection occasions.

4. The pump pressure can be increased or decreased according to the needs of the pump series and cut the impeller diameter to meet, without changing the installation area, which is not available in other pumps.

5. the pump rotor has a small winding, stable operation, low vibration, low noise, long service life.

Product overview

XBD-L type single-suction single-stage vertical fire pump is used for conveying clean water without solid particles and liquid with physical and chemical properties similar to water. XBD-L type single suction single stage vertical fire pump is mainly used for fire system pressurization water supply, can also be used in various factories and mining enterprises water supply and drainage. XBD-L vertical fire pump liquid flow range is 5 ~ 80L/s, pressure range is 0.2 ~ 2.25Mpa, supporting power range is 1.5 ~ 200KW, caliber range is Phi 50 ~ Phi 250mm.

Performance parameter

Main use

XBD-L vertical fire pump is mainly used for pressurizing water supply in fire fighting system pipelines. XBD-ISG type vertical fire pump can also be applied to industrial and urban water supply and drainage, high-rise building pressurized water supply, long-distance water supply, heating, bathroom, boiler cold and warm water circulation pressurized air conditioning refrigeration system water supply and equipment supporting occasions.

Structure specification

XBD-L type single-suction single-stage vertical fire pump is composed of two parts: motor and pump, pump and motor coaxial, pump structure including pump body, impeller, pump cover, mechanical seal and other components. The pump inlet and outlet are on the same horizontal axis, and the caliber specifications are the same, the loading and unloading is very convenient, and the floor area is small. The pump is equipped with a mounting base, easy to install, increase the stability of the pump operation. The pump seal adopts mechanical seal, which has the characteristics of reliable sealing and no leakage. The axial force of the pump is balanced by the impeller with a balance ring. The inlet and outlet flange of the pump is designed according to 1.6Mpa pressure, and the pipeline is convenient.

Parametric chart

Type number	Flow rate Q (L/s)	Outlet pressure (MPa)	Rotational speed n (r/min)	Power P (kw)	Efficiency η (%)
XBD3.0/5-50(65)	5	0.30	2900	4	63
XBD3.2/5-50(65)		0.32
XBD3.4/5-50(65)		0.34
XBD4.6/5-50(65)	5	0.46	2900	7.5	58
XBD4.8/5-50(65)		0.48
XBD5.0/5-50(65)		0.50
XBD7.6/5-50(65)	5	0.76	2900	15	50
XBD7.8/5-50(65)		0.78
XBD8.0/5-50(65)		0.80
XBD11/5-50(65)	5	1.10	2900	30	40
XBD12/5-50(65)		1.20
XBD12/5-50(65)		1.25
XBD3.0/10-65(80)	10	0.30	2900	7.5	71
XBD3.2/10-65(80)		0.32
XBD3.4/10-65(80)		0.34

Type number	Flow rate Q (L/s)	Outlet pressure (MPa)	Rotational speed n (r/min)	Power P (kw)	Efficiency η (%)
XBD4.6/10-65(80)	10	0.46	2900	15	67
XBD4.8/10-65(80)		0.48
XBD5.0/10-65(80)		0.50
XBD7.6/10-65(80)	10	0.76	2900	22	59
XBD7.8/10-65(80)		0.78
XBD8.0/10-65(80)		0.80
XBD11/10-65(80)	10	1.10	2900	37	54
XBD12/10-65(80)		1.20
XBD12.5/10-65(80)		1.25
XBD3.0/25-80(100)	25	0.30	2900	15	76
XBD3.2/25-80(100)		0.32
XBD3.4/25-80(100)		0.34
XBD4.6/25-80(100)	25	0.46	2900	22	74
XBD4.8/25-80(100)		0.48
XBD5.0/25-80(100)		0.50
XBD7.6/25-80(100)	25	0.76	2900	37	69
XBD7.8/25-80(100)		0.78
XBD8.0/25-80(100)		0.80
XBD11/25-80(100)	25	1.10	2900	75	66
XBD12/25-80(100)		1.20
XBD12.5/25-80(100)		1.25
XBD13/25-80(100)	25	1.30	2900	90	57
XBD14/25-80(100)		1.40
XBD15/25-80(100)		1.50
XBD3.0/45-100(125)	45	0.30	2900	22	73
XBD3.2/45-100(125)		0.32
XBD3.4/45-100(125)		0.34
XBD4.6/45-100(125)	45	0.46	2900	37	77
XBD4.8/45-100(125)		0.48
XBD5.0/45-100(125)		0.50
XBD7.6/45-100(125)	45	0.76	2900	55	80
XBD7.8/45-100(125)		0.78
XBD8.0/45-100(125)		0.80
XBD11/45-100(125)	45	1.10	2900	90	70
XBD12/45-100(125)		1.20
XBD12.5/45-100(125)		1.25
XBD2.8/55-150(200)	55	0.28	1450	30	78
XBD3.0/55-150(200)		0.30
XBD3.2/55-150(200)		0.32
XBD4.6/55-150(200)	55	0.46	1450	45	75
XBD4.8/55-150(200)		0.48
XBD5.0/55-150(200)		0.50

Type number	Flow rate Q (L/s)	Outlet pressure (MPa)	Rotational speed n (r/min)	Power P (kw)	Efficiency η (%)
XBD7.6/55-150	55	0.76	2900	75	76
XBD7.8/55-150		0.78
XBD8.0/55-150		0.80
XBD11/55-150	55	1.10	2900	110	73
XBD12/55-150		1.20
XBD12.5/55-150		1.25
XBD13/45-150	45	1.30	2900	110	80
XBD14/45-150		1.40
XBD15/45-150		1.50
XBD4.6/100-200	100	0.46	1450	75	81
XBD4.8/100-200		0.48
XBD5.0/100-200		0.50
XBD3.0/150-250	150	0.30	1450	75	80
XBD3.2/150-250		0.32
XBD3.4/150-250		0.34
XBD4.6/140-250	140	0.46	1450	90	72
XBD4.8/140-250		0.48
XBD5.0/140-250		0.50
XBD2.4/200-300	200	0.24	970	75	81
XBD2.6/200-300		0.26
XBD2.8/200-300		0.28
XBD2.8/200-300(350)	200	0.28	1450	90	84
XBD3.0/200-300(350)		0.30
XBD3.2/200-300(350)		0.32
XBD4.0/200-300	200	0.40	970	132	84
XBD4.2/200-300		0.42
XBD4.4/200-300		0.44
XBD4.6/160-300	160	0.46	1450	110	78
XBD4.8/150-300		0.48
XBD5.0/160-300		0.50
XBD4.6/200-350	200	0.46	1450	160	83
XBD4.8/200-350		0.48
XBD5.0/200-350		0.50
XBD2.8/300-400	300	0.28	1450	132	76
XBD3.0/300-400		0.30
XBD3.2/300-400		0.32
XBD2.8/330-500	330	0.28	1450	160	78
XBD3.0/330-500		0.30
XBD3.2/330-500		0.32
