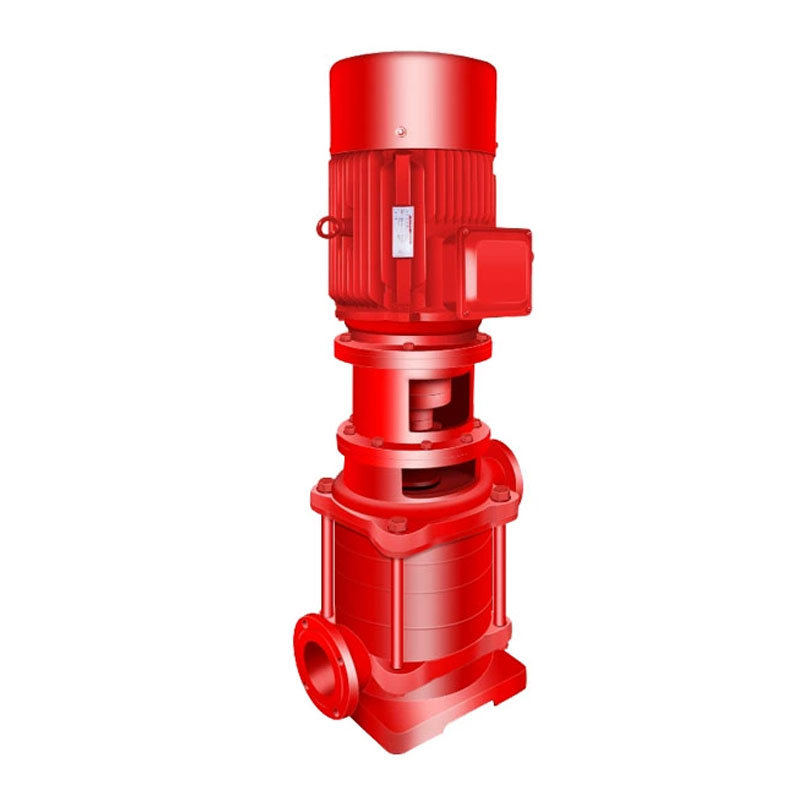

XBD-DL vertical multistage pipeline fire pump

Product characteristics

1. the pump mechanism is compact, small size, beautiful appearance, the vertical mechanism determines the installation area is small, coincidence in the center of the pump foot, thus enhancing the operation stability and service life of the pump.

2. the pump inlet and outlet are horizontal, simplifying the connection of the pipeline.

3. according to the need, the inlet and outlet can be installed in the same direction or 90°, 180°, 270° several different directions to meet different connection occasions.

4. The pump pressure can be increased or decreased according to the needs of the pump series and cut the impeller diameter to meet, without changing the installation area, which is not available in other pumps.

5. the pump rotor has a small winding, stable operation, low vibration, low noise, long service life.

Product overview

XBD-DL vertical single-suction multistage fire pump set, for the transport of clean water without solid particles and physical and chemical properties similar to water liquid. Mainly used for fire system pipeline pressurized water supply, but also suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, distance water supply, heating, bathroom, boiler cold and warm water circulation pressurized, air conditioning refrigeration system water supply and equipment supporting occasions.

The performance and technical conditions of XBD-L series fire pump produced by the company meet the requirements of the newly issued GB6245-1998 "Fire pump performance requirements and test methods" standard, the product has passed the test of the national fire equipment Quality supervision and testing center, and obtained the Shanghai fire product approval certificate.

All the products of the division are designed and optimized by computer. The company has strong technical force, rich production experience and testing means, so as to ensure the stability and reliability of product quality.

Performance parameter

Flow rate: 4-100L/S;

Pressure: 0.16-2.25Mpa;

Power: 3-200KW;

Speed: 1450r/min;

Diameter: Phi 50-Phi 200mm;

Parametric chart

Model/Performance parameters	Series	Flow rate		Head H	Rotational speed n	Motor power(KW)
Model/Performance parameters	Series	(m3/h)	L/s	Head H	Rotational speed n	Motor power(KW)
50DL	2	12	3.34	40	2900	3
	3			60		4
	4			80		5.5
	5			100		7.5
	6			120		7.5
	7			140		11
	8			160		11
50DL	2	18	5	40	2900	5.5
	3			60		7.5
	4			80		11
	5			100		15
	6			120		15
	7			140		18.5
	8			160		22
65DL	2	25	6.94	40	2900	5.5
	3			60		7.5
	4			80		11
	5			100		15
	6			120		15
	7			140		18.5
	8			160		22
65DL	2	36	10	40	2900	7.5
	3			60		11
	4			80		15
	5			100		18.5
	6			120		22
	7			140		22
	8			160		30
80DL	2	50	13.9	40	1480	11
	3			60		15
	4			80		22
	5			100		30
	6			120		30
	7			140		37
	8			160		45
	9			180		45
	10			200		55
100DL	2	72	20	40	1480	15
	3			60		18.5
	4			80		30
	5			100		37
	6			120		37
	7			140		45
	8			160		55
	9			180		55
	10			200		75
100DL	2	100	27.8	40	1480	18.5
	3			60		30
	4			80		37
	5			100		45
	6			120		55
	7			140		75
	8			160		75
	9			180		90
	10			200		90
150DL	2	150	41.7	40	1480	30
	3			60		37
	4			80		45
	5			100		55
	6			120		75
	7			140		90
	8			160		90
	9			180		110
150DL	2	160	44.4	50	1480	37
	3			75		55
	4			100		75
	5			125		90
	6			150		110
	7			175		132
200DL	2	288	80	60		90
	3			90		110
	4			120		132
	5			150		160
	6			180		200
