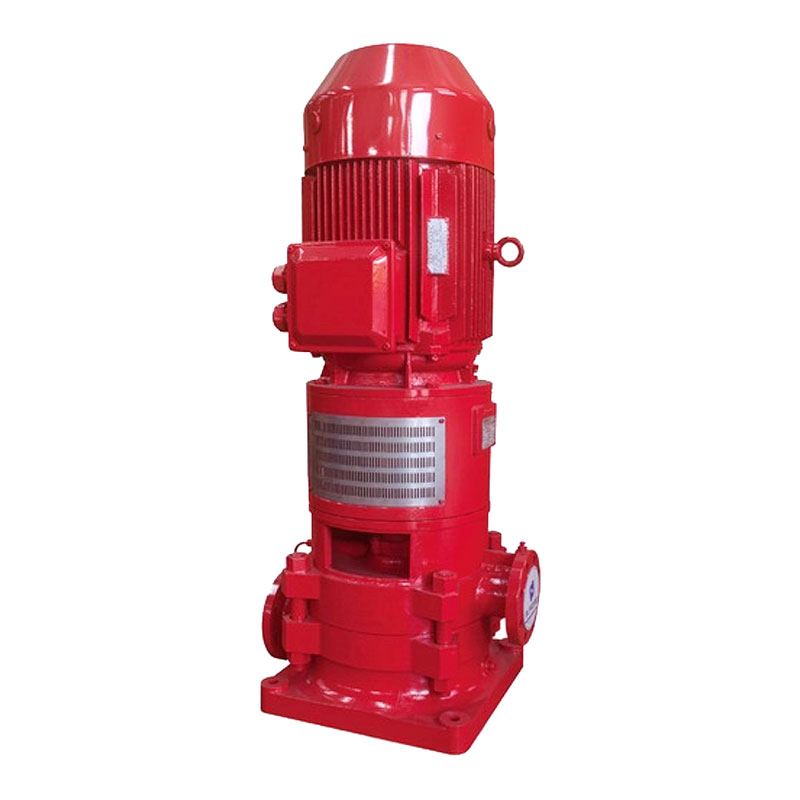

XBD-DN series multi-stage fire pump

Product characteristics

XBD-DN series multi-stage centrifugal fire pump compared with similar fire pumps, the pump with the same flow pressure specifications, its volume reduced by 20%-40% to reduce the floor occupation and space of the pump, its spectrum distribution is reasonable, can well adapt to the fire needs of different floor management, meet the design selection. The product has reached the higher level in China, with the advantages of small footprint, light weight, excellent performance and reliable operation. It has high cost performance and is the ideal product for users to choose fire pump.

Product overview

XBD-DN series multi-stage centrifugal fire pump is a new product developed by our company according to market needs. Its performance and technical conditions conform to the requirements of the newly promulgated GB6245-1998 "Fire pump Performance requirements and test methods" standard.

XBD-DN series multi-stage centrifugal fire pump, the direction of the import and export flange can be 90°, 180°, 270° relative to the direction of the suction inlet as required (0 degrees are not allowed).

Performance parameter

Working condition

Rotation speed: 2950r/min

Liquid temperature ≤80℃ Clean water

Flow range 10-30L/S

Pressure range 0.5-1.8MPa

Type description

Standard configuration

The suction inlet and outlet direction are opposite (180°). The material of the pump body is cast iron, the impeller material is copper alloy, the shaft material is stainless steel, and the mechanical seal is adopted.

Structural installation type

Vertical type

Outlet direction

Vertical: From the top down, based on the suction, clockwise rotation.

B 90°

C 180°

D 270°

Pump steering

Vertical: From the motor end to the pump, for the clockwise direction.
